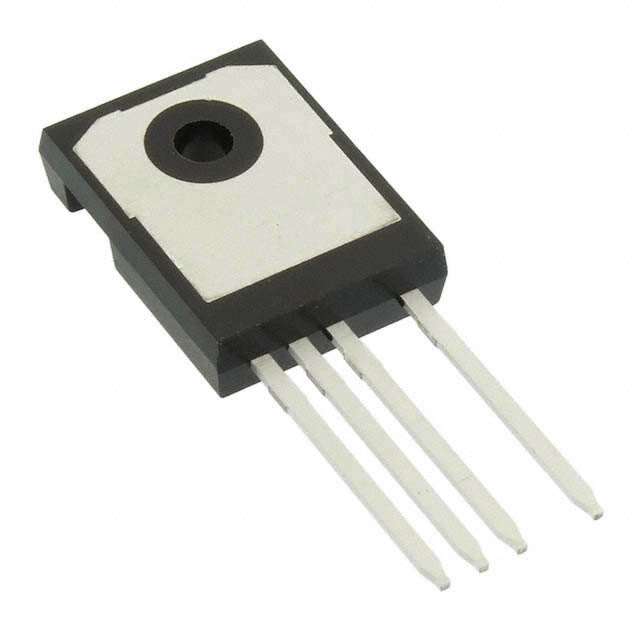

IKZ50N65ES5XKSA1 S5 medium-speed switching IGBTs are addressable applications for links between L5 and H5 and for switching between 10kHz and 40kHz.The IGBTs offer high efficiency, faster time-to-market cycles, reduced circuit design complexity, and optimised PCB bill of materials costs.The features of the S5 package help the designer to achieve the objectives without increasing circuit S5 package features help designers achieve their goals without increasing circuit complexity.

Features

● Very low VCE (saturation): 1.35 V (25°C)

● IC(n) = four times rated current (100°C Tc)

● Soft current dropout characteristics, no tracking current

● Symmetrical, low voltage overshoot

● Controlled gate voltage (no oscillation)

● Maximum junction temperature: Tvj = 175°C

● JEDEC compliance

● No need for VCE clamping circuit (peak)

● Suitable for use with a single gate on/off resistor

● No gate clamping element required

● No need for a Miller-clamped gate driver

● Reduces the need for EMI filtering

● Ideal for parallel connection

Applications

● Industrial UPS

● Industrial SMPS

● Energy storage

● Chargers

● Welding
