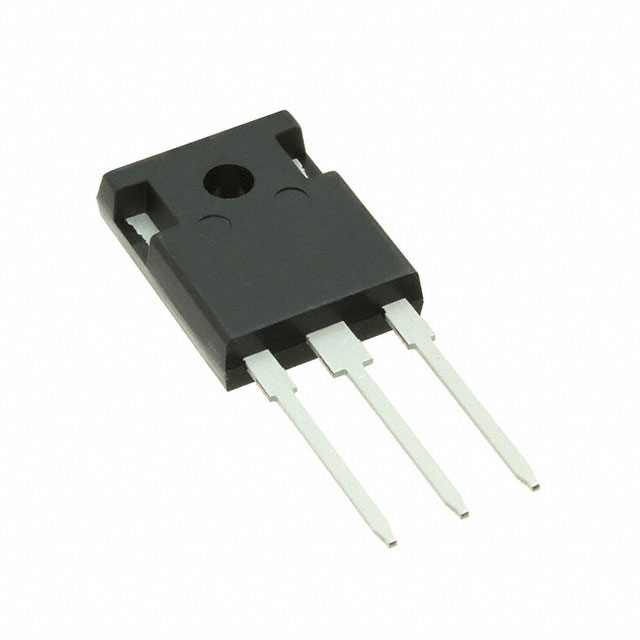

IKW15N120H3FKSA1 High-speed 1200 V 15 A 4th generation hard-switching TRENCHSTOP™ IGBTs, co-packaged with a continuity diode in a TO247 package, offer a perfect balance between switching and conduction losses. The key feature of this series is the MOSFET-like turn-off switching behaviour with reduced turn-off losses.

Features

Designed to replace planar MOSFETs in applications with frequencies below 70kHz

Very low switching losses for improved efficiency

Excellent VCEsat behaviour through the well-known Infineon TRENCHSTOP™ technology

Fast switching behaviour with low EMI

Optimised diodes for the target application to further reduce switching losses

Option for very low gate resistance (down to 5Ω) while maintaining excellent switching behaviour

Short circuit capability

Tj(max) 175°C

Available in packages with or without a continuity diode for added design flexibility

Product Attributes

Series: TrenchStop®

Package: Tube

IGBT Type: Trench Field Cutoff

Voltage - Collector Breakdown (Max): 1200 V

Current - Collector (Ic) (Max): 30 A

Current - Collector Pulse (Icm): 60 A

Vce(on) at varying Vge, Ic (max): 2.4V @ 15V, 15A

Power - Max: 217 W

Switching Energy: 1.55mJ

Input Type: Standard

Gate Charge: 75 nC

Td (On/Off) Value at 25°C: 21ns/260ns

Test Conditions: 600V, 15A, 35 ohms, 15V

Reverse Recovery Time (trr): 260 ns

Operating Temperature: -40°C ~ 175°C (TJ)

Mounting Type: Through Hole

Package/Housing: TO-247-3

Supplier Device Package: PG-TO247-3-1
