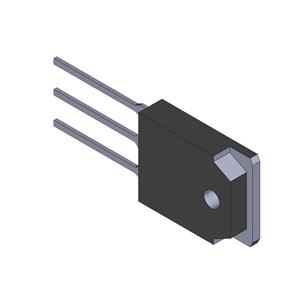

FGAF40N60UFTU - UF series of IGBTs provide low conduction and switching losses. The UF series is designed for applications such as general inverters and PFC where high speed switching is a required feature.

Product Attributes

Technology: Si

Package / Case: TO-3PF-3

Mounting Style: Through Hole

Configuration: Single

Collector- Emitter Voltage VCEO Max: 600 V

Collector-Emitter Saturation Voltage: 3.1 V

Maximum Gate Emitter Voltage: - 20 V, 20 V

Continuous Collector Current at 25 C: 40 A

Pd - Power Dissipation: 100 W

Minimum Operating Temperature: - 55°C

Maximum Operating Temperature: + 150°C

Continuous Collector Current Ic Max: 40 A

Gate-Emitter Leakage Current: 100 nA

Features

High speed switching: Eoff =12uJ/A

Low saturation voltage : VCE(sat) = 2.3 V @ IC = 20A

High input impedance

Applications

Motion Control - Home Appliance
