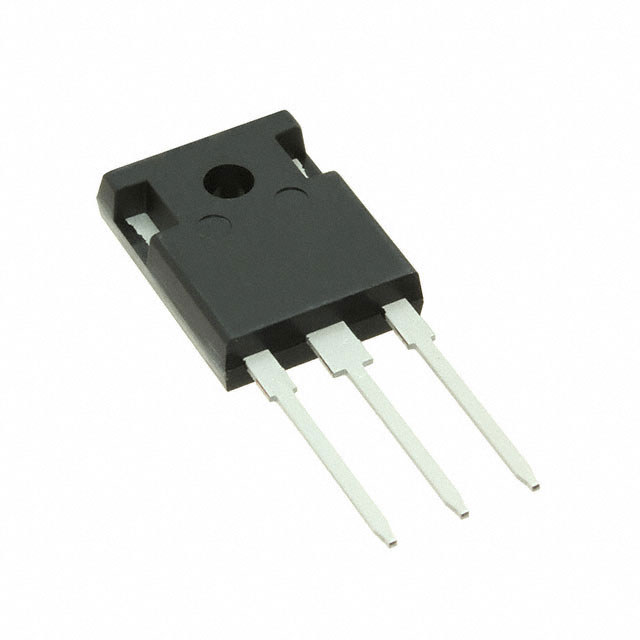

IHW25N120E1XKSA1 Reverse Conducting IGBT with Monolithic Body Diode, Reverse Conducting E1 1200 V, 25 A RC-E IGBTs are available in a TO-247 package with a monolithic integrated diode, focusing on system efficiency and reliability to meet the demanding requirements of induction cooking.

Feature Description

Low E off and VCE(sat)

Designed for switching applications

Performance optimised for switching frequencies from 18kHz to 40kHz

Most commonly used blocking voltage, 1200V

Advantages

Excellent price/performance ratio for cost-effective designs

Low losses help designs meet energy efficiency standards

Direct replacement for existing designs

Soft switching for good EMI behaviour

Technical specifications

IGBT type: NPT and trench

Voltage - Collector Breakdown (max): 1200 V

Current - Collector (Ic) (max): 50 A

Current - Collector Pulse (Icm): 75 A

Vce(on) at varying Vge, Ic (max): 2V @ 15V, 25A

Power - Max: 231 W

Switching Energy: 800µJ (Off)

Input Type: Standard

Gate Charge: 147 nC

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Through Hole
