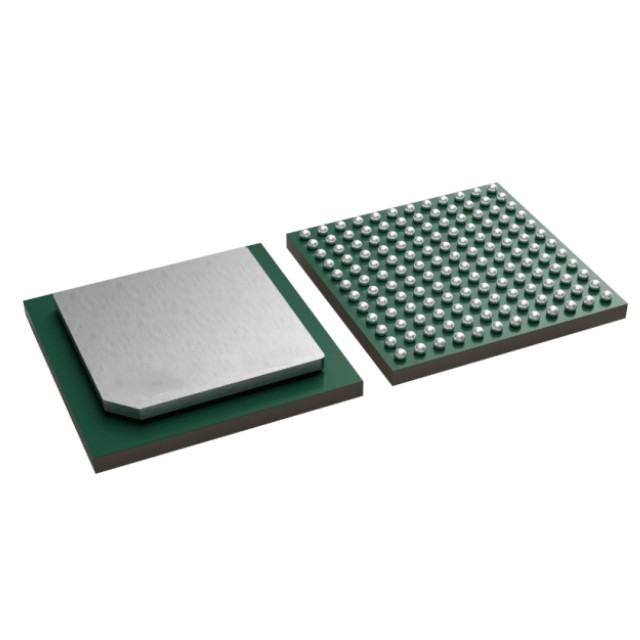

For picture reference, please see the specifications
< >

Commodity Model:DAC38RF84IAAVR

Trade Name:DAC38RF84IAAVR

Brand:TI

Particular Year:23+

Package:FCBGA-144

Delivery Date:New and Original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
DAC38RF84IAAVR
Package
FCBGA-144
Describe
14-Bit 9GSPS 6x-24x Interpolated 6GHz and 9GHz PLL Digital-to-Analogue Converters (DACs)

Product Description

The DAC38RF84IAAVR is a 14-bit 9GSPS digital-to-analogue converter (DAC) capable of synthesising wideband signals from 0 to 4.5GHz. The high dynamic range allows the DAC38RFxx to generate signals for a variety of applications, including 3G/4G signals for wireless base stations. The device features a low-power JESD204B interface with up to 8 channels.


Product Attributes

Product Category: Digital to Analogue Converters - DACs

Family: DAC38RF84

Resolution: 14 bit

Sample ratio: 9 GS/s

Number of Channels: 1 Channel

Stabilisation time: 1 ns

Output type: Voltage

Interface type: JESD204B

Minimum operating temperature: - 40 C

Maximum Operating Temperature: +85 C

Mounting Style: SMD/SMT

Package / Case: FCBGA-144

Construction: Current Source

Features: Ultra High Speed

Humidity Sensitivity: Yes

Number of Converters: 1 Converter

Pd-Power Dissipation: 3.779 W

Power Consumption: 2.195 W

Reference Type: External, Internal

Reference Voltage: 900 mV

SFDR - Spurious Free Dynamic Range: 72 dB

Shutdown: No Shutdown

Supply Voltage - Max: 1.89 V

Supply Voltage - Min: - 1.89 V

Type: RF DAC


Applications

Wireless communications

Communications Test Equipment

Arbitrary Waveform Generators

Military Software Defined Radio

Radar and Satellite Communications (SATCOM)
