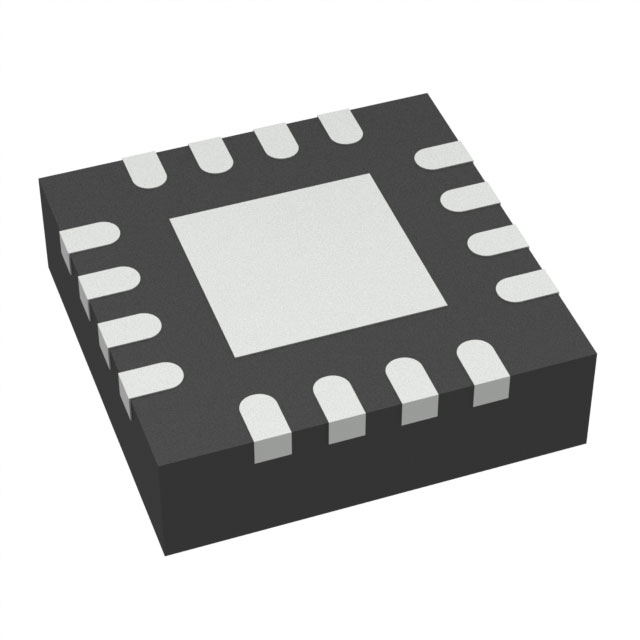

For picture reference, please see the specifications
< >

Commodity Model:DAC70508MRTER

Trade Name:DAC70508MRTER

Brand:TI

Particular Year:23+

Package:WQFN-16

Delivery Date:New and Original

Stock: 2248pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
DAC70508MRTER
Package
WQFN-16
Describe
True 14-bit, 8-channel, SPI, Voltage Output DAC with Precision Internal Reference Voltage

Product Description

The DAC70508MRTER is an 8-channel device with true 14-bit resolution. User-selectable gain configurations provide full-scale output voltages of 1.25V (gain= 1/2), 2.5V (gain= 1), or 5V (gain= 2). In addition, the DACx0508 has a high linearity of ±1LSB INL, monotonicity, and is powered from a single 2.7V to 5.5V supply.


Ideal for use in battery-powered devices, the DAC70508MRTER consumes a low current of 0.6mA/channel (at 5.5V). A per-channel shutdown option reduces the current consumption of the DACx0508 to 15μA.


Features

Performance

INL: ±1LSB (maximum at 16-bit resolution)

TUE: ±0.14% FSR (max)

Integrated 2.5V precision internal reference

Initial accuracy: ±5mV (max)

Low drift: 5ppm/°C (typical)

High drive capability: 20mA, 0.5V (supply rail)

Flexible output configuration

User selectable gain: 2, 1 or ½

Reset to zero or neutral level

Wide operating range

Power supply: 2.7V to 5.5V

Temperature range: -40°C to 125°C

50MHz SPI-compatible serial interface

4-wire mode, 1.7V to 5.5V operation

Daisy chain operation

CRC error checking

Low power consumption: 0.6mA/channel (5.5V)

Small package: 3mm × 3mm, 16-pin WQFN


Applications

Fibre optic networks

Wireless infrastructure

Industrial automation

Data acquisition systems
