Trade Name:ADUM4121ARIZ
Brand:ADI
Particular Year:23+
Package:8-SOIC
Delivery Date:New and Original
Stock: 2000pcs
ADUM4121ARIZ - High Voltage, Isolated Gate Driver with Internal Miller Clamp, 2 A Output
Product Description
ADUM4121ARIZ is 2A isolated, single-channel drivers, it provide 5 kV rms isolation in the wide-body, 8-lead SOIC package. The Device operate with an input supply ranging from 2.5 V to 6.5 V, providing compatibility with lower voltage systems. In comparison to gate drivers that employ high voltage level translation methodologies, it offer the benefit of true, galvanic isolation between the input and the output.
Product Features
2 A peak output current (<2 Ω RDSON)
2.5 V to 6.5 V input
4.5 V to 35 V output
Undervoltage lockout (UVLO) at 2.5 V VDD1
Multiple UVLO options on VDD2
Grade A: 4.4 V (typical) UVLO on VDD2
Grade B: 7.3 V (typical) UVLO on VDD2
Grade C: 11.3 V (typical) UVLO on VDD2
Precise timing characteristics: 53 ns maximum isolator and driver propagation delay
CMOS input logic levels
High common-mode transient immunity: >150 kV/µs
High junction temperature operation: 125°C
Default low output
Internal Miller clamp
Applications
Switching power supplies
Isolated IGBT/MOSFET gate drives
Industrial inverters
Gallium nitride (GaN)/silicon carbide (SiC) power devices
Model
Brand
Package
Quantity
Describe
BROADCOM
SO-16
2000
Automotive 2.5A Gate-Drive Optocoupler with Integrated IGBT Desat Overcurrent Sensing
BROADCOM
SO-16
2000
Automotive 2.5A MOSFET Gate Drive Optocoupler with Integrated Desat Over Current Sensing
BROADCOM
SO-16
2000
Automotive 2.5A Gate Drive Optocoupler with Integrated Flyback Controller
ST
24-SOIC
1000
Gate Driver Channel 24-SO Automotive Galvanically Isolated Single Gate Driver
A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.
A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.
A: at present, our self-employed brands TI,ST,ADI,NXP,LATTICE,CYPRESS,INFINEON,XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.
A: You can inquire through the website, or by phone and email.
A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.
A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
The full name of Analog Devices is Analog Devices, Inc. (ADI). As an outstanding supplier specializing in semiconductor sensors and signal processing ICs, adi regards innovation, performance and excellence as the cultural pillars of the company and ha…

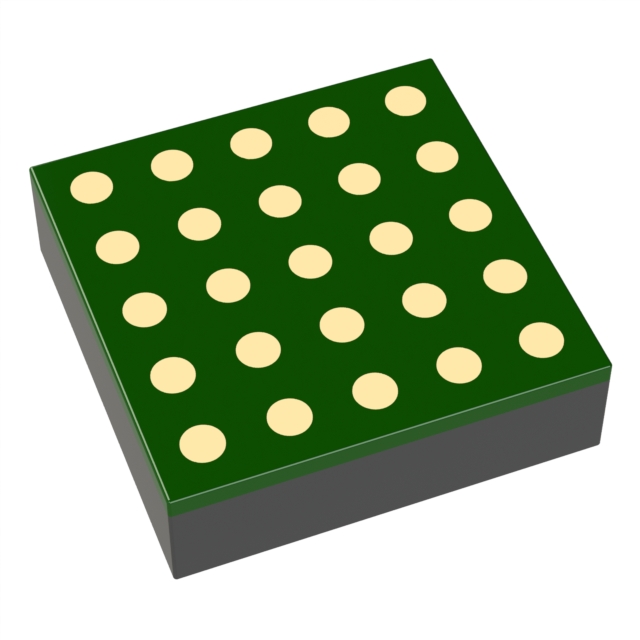

LTM4622IV
