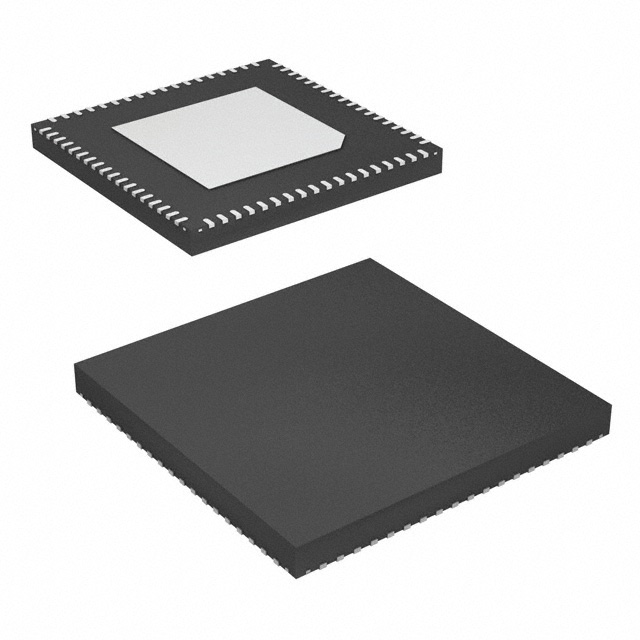

For picture reference, please see the specifications
< >

Commodity Model:DAC8775IRWFR

Trade Name:DAC8775IRWFR

Brand:TI

Particular Year:23+

Package:VQFN-72

Delivery Date:New and Original

Stock: 4000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
DAC8775IRWFR
Package
VQFN-72
Describe
16-Bit Quad Programmable Current Output and Voltage Output Digital-to-Analogue Converters (DACs)

Product Description

The DAC8775IRWFR is a four-channel, precision, fully integrated 16-bit, digital-to-analog converter (DAC) with adaptive power management designed to meet the requirements of industrial control applications. The adaptive power management circuitry, when enabled, minimises power consumption. When programmed as a current output, the supply voltage of the current output driver is adjusted from 4.5V to 32V by the integrated buck/boost converter based on continuous feedback of the voltage at the current output pin. When programmed as a voltage output, the circuit generates a programmable supply voltage for the voltage output stage (±15 V) The DAC8775 also includes an LDO to generate a digital supply (5 V) from a single supply pin.


Features

• Output Current:

– 0 mA to 24 mA; 3.5 mA to 23.5 mA; 0 mA to 20 mA; 4 mA to 20 mA; ±24 mA

• Output Voltage (with/without 20% over-range):

– 0 V to 5 V; 0 V to 10 V; ±5 V; ±10 V

– 0 V to 6 V; 0 V to 12 V; ±6 V; ±12 V

• Adaptive Power Management

• Single Wide Power Supply Pin (12 V – 36 V )

• ±0.1% FSR Total Unadjusted Error (TUE)

• DNL: ±1 LSB Max

• Internal 5-V Reference (10 ppm/°C max)

• Internal 5-V Digital Power Supply Output

• CRC/Frame Error Check, Watchdog Timer

• Thermal Alarm, Open/Short Circuit for System Reliability

• Safe Actions on Alarm Condition

• Auto Learn Load Detection

• Wide Temperature Range: –40°C to +125°C


Applications

• 4-mA to 20-mA Current Loops

• Analog Output Modules

• Programmable Logic Controllers (PLCs)

• Building Automation

• Sensor Transmitters

• Process Control
