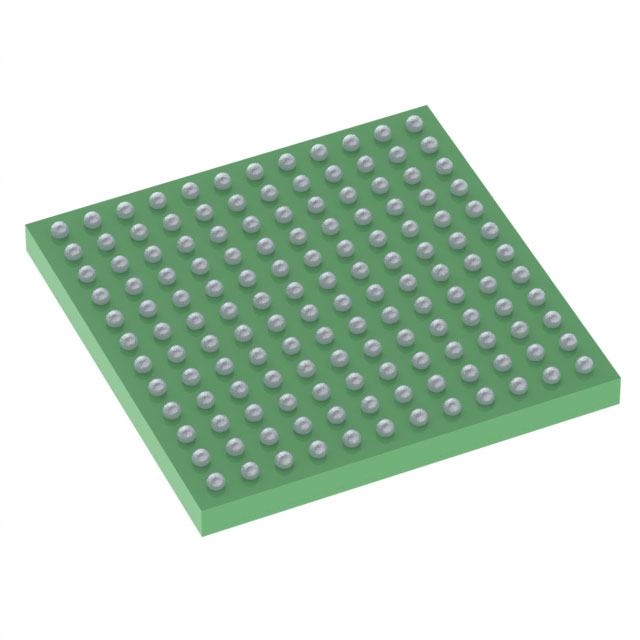

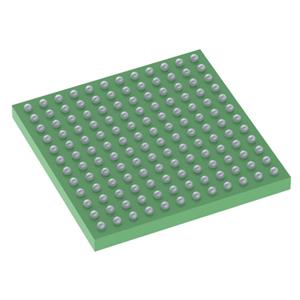

Commodity Model:DAC38RF80IAAVR

Trade Name:DAC38RF80IAAVR

Brand:TI

Particular Year:23+

Package:FCBGA-144

Delivery Date:New and Original

Stock: 3960pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
DAC38RF80IAAVR
Package
FCBGA-144
Describe
Dual 14-Bit 9GSPS 6x-24x Interpolation 6GHz and 9GHz PLL Digital-to-Analogue Converters (DACs)

Product Description

The DAC38RF80IAAVR is a high-performance, dual/single-channel, 14-bit, 9GSPS, RF-sampling digital-to-analog converter (DAC) capable of synthesising broadband signals in the 0GHz to 4.5GHz range. The high dynamic range allows the DAC38RFxx family to generate signals for a variety of applications, including 3G/4G signals for wireless base stations and radar.


The device features a low-power JESD204B interface with up to eight channels at a maximum bit rate of 12.5Gbps/channel and a composite input data rate of 1.25GSPS/channel. the DAC38RFxx provides two digital upconverters per channel with a variety of interpolation rate options. A digital quadrature modulator with frequency-flexible independent NCOs can be used to support multi-band operation. An optional low-jitter PLL/VCO simplifies DAC sample clock generation by allowing the use of a lower frequency reference clock.


Features

• 14-bit resolution

• Maximum DAC sample rate: 9 GSPS

• Key Specifications:

– RF full-scale output power at 2.1 GHz:

• DAC38RF80/90/84: 0 dBm

• DAC38RF83/93/85: 3 dBm (with 2:1 balun)

– Spectral performance(on-chip PLL, DIFF):

• fDAC = 5898.24 MSPS, fOUT = 2.14 GHz

– WCDMA ACLR: 75 dBc

– WCDMA alt-ACLR: 77 dBc

• fDAC = 8847.36 MSPS, fOUT = 3.7 GHz

– 20 MHz LTE ACLR: 63 dBc

• fDAC = 9 GSPS, fOUT = 1.8 GHz

– IMD3 = 70 dBc (–6 dBFS, 10-MHz tone spacing)

– NSD = –157 dBc/Hz

• Dual-band digital up-converter per DAC

– 6, 8, 10, 12, 16, 18, 20 or 24x interpolation

– 4 Independent NCOs with 48-bit resolution

• JESD204B Interface, subclass 1

– Support for multichip synchronization

– Maximum lane rate: 12.5 Gbps

• Single-ended output with integrated balun (DAC38RF80/90/84) covering 700 MHz to 3800 MHz

• Internal PLL and VCO with bypass

– fC(VCO) = 5.9 or 8.9 GHz

• Power dissipation: 1.4 to 2.2 W/ch

• Power supplies: –1.8 V, 1 V, 1.8 V

• Package: 10 x 10 mm BGA, 0.8 mm pitch, 144-balls


Applications

• Wireless communications

• Communications test equipment

• Arbitrary waveform generators

• Military software defined radios

• Radar and satellite communications (SATCOM)

Associated Products

Model

Brand

Package

Quantity

Describe

DAC3164IRGCR

TI

VQFN-64

5000

12-bit, 500MSPS Digital-to-Analog Converter (DAC), VQFN-64

LTC2000ACY-16

ADI

BGA-170

2000

Single-channel, 2.7Gsps, 16-bit digital-to-analog converter (DAC)

DAC3162IRGZR

TI

VQFN-48

5000

500MSPS, Dual, 12-bit Digital-to-Analogue Converter (DAC), VQFN-48

LTC2000ACY-14

ADI

BGA-170

2500

Single-channel, 2.7Gsps, 14-bit digital-to-analog converter (DAC)

DAC3161IRGCR

TI

VQFN-64

5000

12-bit, 500MSPS Digital-to-Analog Converter (DAC), VQFN-64

LTC2000ACY-11

ADI

BGA-170

2500

Single-channel, 2.7Gsps, 11-bit digital-to-analog converter (DAC)

LTC2645HMS-L12

ADI

MSOP-16

3000

Four-channel, 12-bit, PWM-to-voltage output digital-to-analog converter (DAC)

LTC2645HMS-L10

ADI

MSOP-16

3000

Four-channel, 10-bit, PWM-to-voltage output digital-to-analog converter (DAC)

LTC2645CMS-L8

ADI

MSOP-16

3000

Four-channel, 8-bit, PWM-to-voltage output digital-to-analog converter (DAC)

LTC2645CMS-L12

ADI

MSOP-16

2000

Four-channel, 12-bit, PWM-to-voltage output digital-to-analog converter (DAC)
