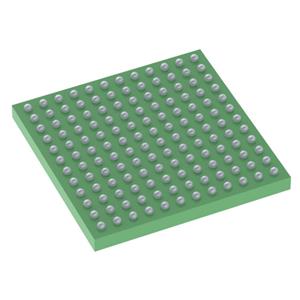

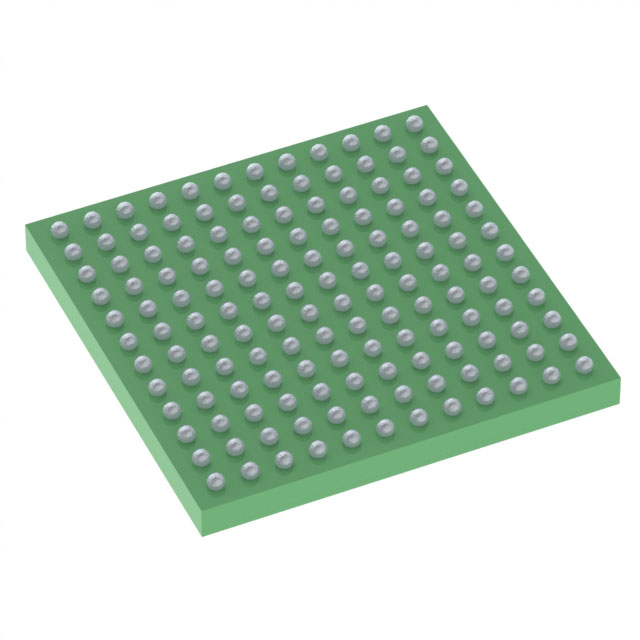

For picture reference, please see the specifications
< >

Commodity Model:DAC37J82IAAVR

Trade Name:DAC37J82IAAVR

Brand:TI

Particular Year:23+

Package:FCBGA-144

Delivery Date:New and Original

Stock: 3960pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
DAC37J82IAAVR
Package
FCBGA-144
Describe
Dual, 16-bit, 1.6GSPS, 1x-16x Interpolated Digital-to-Analogue Converters (DACs)

Product Description

The DAC37J82IAAVR is a very low power, 16-bit, dual-channel, 1.6 GSPS digital-to-analogue converter (DAC) with a JESD204B interface. The maximum input data rate is 1.23 GSPS.


Product Features

Resolution: 16-bit

Maximum Sample Rate: 1.6GSPS

Maximum Input Data Rate: 1.23GSPS

JESD204B Interface

8 JESD204B serial input channels

Maximum bit rate per channel 12.5Gbps

Subclass 1 Multi-DAC synchronisation

On-chip very low jitter phase-locked loop (PLL)

Selectable 1x - 16x interpolation

Stand-alone complex mixer with 48-bit numerically controlled oscillator (NCO) / or ±n x Fs/8

Wide-band digital quadrature modulator correction

Sinx/x correction filters

Fractional Sample Group Delay Correction

Flexible routing to four analogue outputs via output multiplexers

3/4-wire serial control bus (SPI)

Integrated temperature sensor

JTAG boundary-scan

Pin-compatible with the four-channel DAC37J84

Power dissipation: 1.1W at 2.5GSPS

Package: 10mm x 10mm, 144-ball flip chip ball grid array (BGA)


Applications

Cellular base stations

Diversity transmission

Broadband communications

Direct Digital Synthesis (DDS) instruments

Millimetre wave/microwave backhaul

Automated Test Equipment

Cable Infrastructure

Radar
