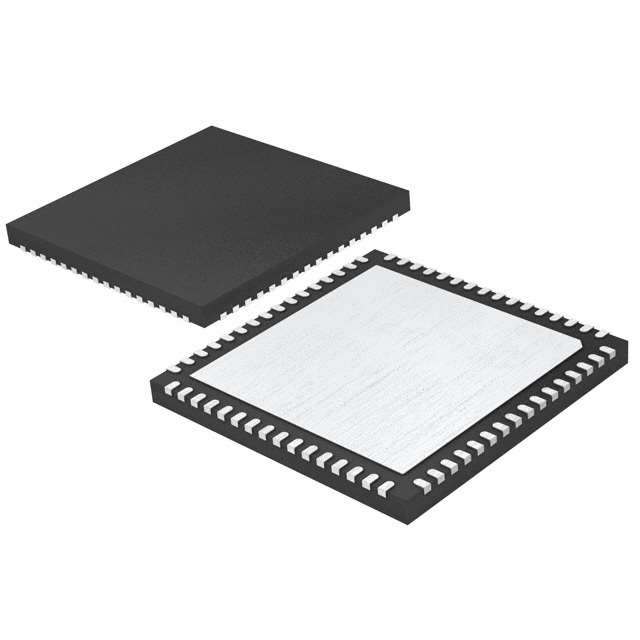

For picture reference, please see the specifications
< >

Commodity Model:DAC3171IRGCR

Trade Name:DAC3171IRGCR

Brand:TI

Particular Year:23+

Package:VQFN-64

Delivery Date:New and Original

Stock: 11425pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
DAC3171IRGCR
Package
VQFN-64
Describe
14-bit, 500MSPS Digital-to-Analogue Converter (DAC)

Product Description

The DAC3171IRGCR (DAC31x1) is a family of single-channel, 500MSPS digital-to-analog converters (DACs). The family is paired with a 14-bit wide Low Voltage Differential Signalling (LVDS) digital bus with input First-In-First-Out (FIFO). The 14-bit DAC3171 also supports a DDR 7-bit LVDS interface mode. For precise signal synchronisation, the FIFO input and output pointers can be synchronised across multiple devices.The DAC outputs are current-sourced, with a -0.5V to +1V compliance range, and are terminated to GND.The DAC31x1 is compatible with the DAC31x4 dual-channel, 10-bit, 12-bit, and 14-bit, 500 MSPS digital-to-analogue converters.The DAC3171IRGCR is a 14-bit digital bus with input first-in-first-out (FIFO), and a 14-bit LVDS interface mode.


The DAC3171IRGCR is available in a VQFN-64 package and is rated for operation over the -40°C to 85°C industrial temperature range.


Product Attributes

Number of bits: 14

Number of digital-to-analog converters: 1

Build-up time: 11ns (standard)

Output Type: Current - Unbuffered

Differential Output: Yes

Data Interface: LVDS - Parallel

Reference Type: External, Internal

Voltage - Supply, Analogue: 1.71V ~ 1.89V, 3.15V ~ 3.45V

Voltage - Powered, Digital: 1.71V ~ 1.89V

INL/DNL (LSB): ±2, ±1

Architecture: Current Sourced

Operating Temperature: -40°C ~ 85°C

Package/Housing: 64-VFQFN Exposed Pad

Supplier Device Package: 64-VQFN (9x9)

Mounting Type: Surface Mount


Applications

• Wireless Infrastructure

- PA Bias, Envelope Tracking, TX

• Radar

• Software Defined Radio

• Signal and Waveform Generators

• Cable Front End Equipment
