The DAC61408RHAR digital-to-analogue converters (DACs) are a family of pin-compatible, 8-channel, buffered, high-voltage output digital-to-analogue converters (DACs) with 12-bit resolution.The DACx1408 includes a low-drift, 2.5V internal reference that eliminates the need for an external precision reference in most applications. The device is monotonic and provides high linearity of ±1LSB INL.

Product Attributes

Product Category: Digital to Analogue Converters - DACs

Family: DAC61408

Resolution: 12 bit

Number of Channels: 8 Channel

Stabilisation time: 12 us

Output Type: Voltage Buffered

Interface Type: SPI

Minimum operating temperature: - 40 C

Maximum Operating Temperature: + 125 C

Mounting Style: SMD/SMT

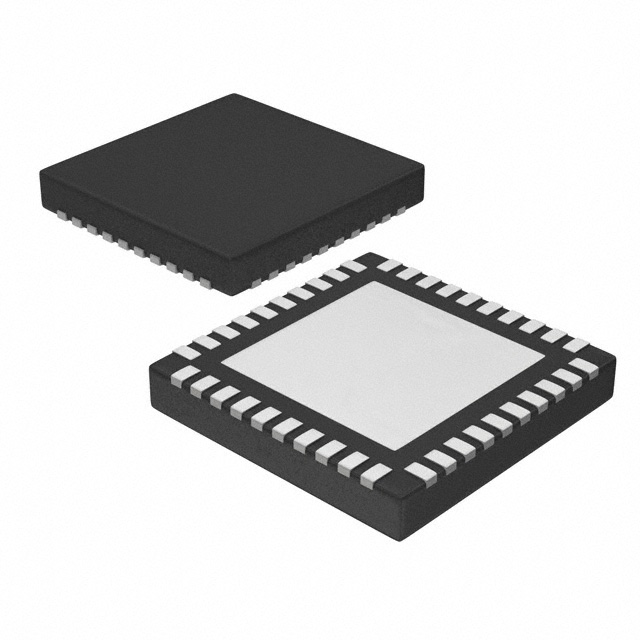

Package / Case: VQFN-40

Construction: R-2R

DNL - Differential Non-Linear: 1 LSB

Features: Integrated Temp Sensor

Gain Error: 0.02 %FSR

INL - Integral Non-Linearity: 1 LSB

Humidity sensitivity: Yes

Operating supply current: 5 mA

Product Type: DACs - Digital to Analogue Converters

Reference type: Internal

Reference voltage: 2.5 V

Shutdown: Shutdown

Factory Package Quantity: 2500

Sub Category: Data Converter ICs

Supply Voltage-Max: 5.5 V

Supply Voltage - Min: 1.7 V

Type: High Voltage Output DAC

Applications

- Fibre optic networks: Mach-Zender modulator bias control

- Industrial automation

- Test and measurement
