The STD20NF06LAG power MOSFETs are developed using ST's unique STripFET process, which is designed to minimize input capacitance and gate charge. This makes the device suitable for use as a master switch for advanced high-efficiency isolated DC-DC converters in telecommunications and computer applications, as well as applications with low gate charge drive requirements.

Product attribute

FET type: N channel

Technology: MOSFET (Metal oxide)

Drain-source voltage (Vdss) : 60 V

Current at 25°C - Continuous Drain (Id) : 24A (Tc)

Drive voltage (Max Rds On, min Rds On) : 5V, 10V

On-resistance (Max.) at different ids and Vgs: 40 milliohm @ 12A, 10V

Vgs(th) (Max.) for different ids: 2.5V @ 250µA

Gate charge (Qg) at different Vgs (Max.) : 13 Nbc@5 V

Vgs (Max.) : ±18V

Input capacitance (Ciss) at different Vds (Max.) : 660 PF-@25 V

FET function: -

Power dissipation (Max) : 60W (Tc)

Operating temperature: -55°C ~ 175°C (TJ)

Class: Automobile class

Qualification: AEC-Q101

Mounting type: Surface mount type

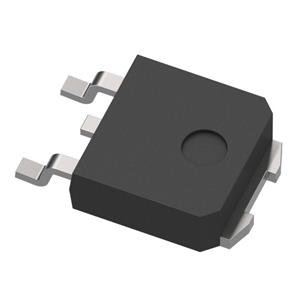

Supplier Device Package: TO-252 (DPAK)

Package/housing: TO-252-3, DPAK (2 Leads + Tab), SC-63

Basic product number: STD20
