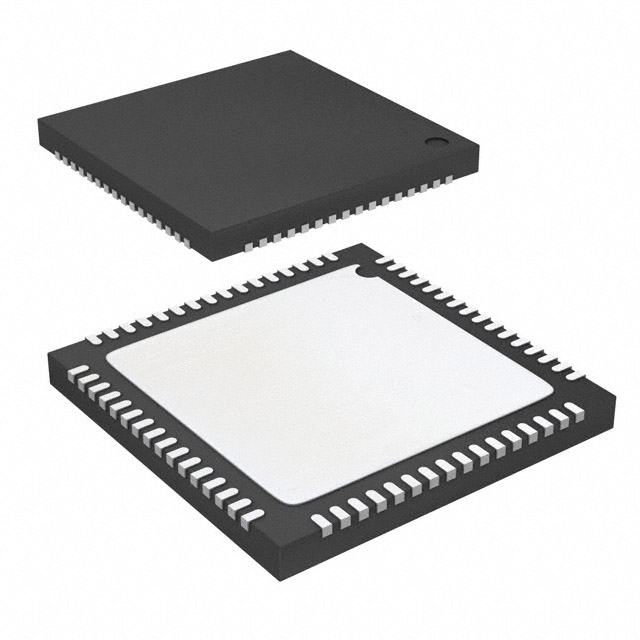

AD6674BCPZ-500 is a 385MHz bandwidth mixed-signal intermediate frequency receiver. It consists of two, 14-bit 1.0 GSPS/750 MSPS/500 MSPS analog-to-digital converters and various digital signal processing blocks consisting of four wideband DDCs, an NSR, and VDR monitoring.

Feature

JESD204B (Subclass 1) coded serial digital outputs

In band SFDR = 83 dBFS at 340 MHz (750 MSPS)

In band SNR = 66.7 dBFS at 340 MHz (750 MSPS)

1.4 W total power per channel at 750 MSPS (default settings)

Noise density = -153 dBFS/Hz at 750 MSPS

1.25V, 2.5 V, and 3.3V dc supply operation

95 dB channel isolation/crosstalk

Amplitude detect bits for efficient automatic gain control implementation

Noise shaping requantizer (NSR) option for main receiver function

Variable dynamic range (VDR) option for digital predistortion function

2 integrated wideband digital processors per channel

12-bit numerically controlled oscillator, up to 4 cascaded half-band filters

Differential dlock inputs

Integer clock divide by 1,2,4, or8

Energy saving power-down modes

Flexible JESD204B lane configurations

Small signal dither

Appliacations

Diversity multiband, multimode digital receivers

3G/4G, TD-SCDMA, W-CDMA, GSM, LTE, LTE-A

DOCSIS 3.0 CMTS upstream receive paths

HFC digital reverse path receivers
