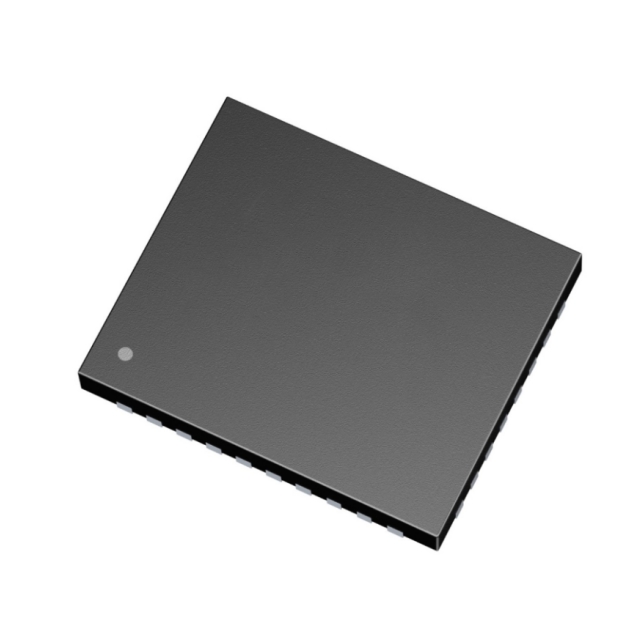

The TDA38640-0000 OptiMOS™ IPOL is an easy-to-use, fully integrated, high efficiency 40A synchronous buck regulator with Intel SVID and I2C interfaces. It can be used in Intel VR12, VR 12.5, VR13, VR14, IMPVP8 designs and DDR memories without major bill of materials (BOM) changes. Select the desired mode in the MTP and automatically configure pin-outs, VID tables and other related features. This greatly reduces time to market and eliminates the need to manage and stock different PWM controllers.

Product Attributes

Function: Buck

Output Configuration: Positive

Topology: Buck

Output Type: Programmable

Number of Outputs: 1

Voltage - Input (Min): 3V

Voltage - Input (Max): 17V

Voltage - Output (Min/Fixed): 0.25V

Voltage - Output (Max): 3.04V

Current - Output: 40A

Frequency - Switch: 400kHz ~ 2MHz

Synchronous Rectifier: Yes

Operating Temperature: -40°C ~ 125°C (TJ)

Rating: Automotive Grade

Qualification: AEC-Q101

Mounting Type: Surface Mount

Package/Housing: 36-PowerVFQFN

Supplier Device Package: PG-IQFN-36-3

Applications

● Telecom and datacom applications

● Server and high-end desktop CPU VRs for non-core applications

● Distributed point-of-load power architectures
