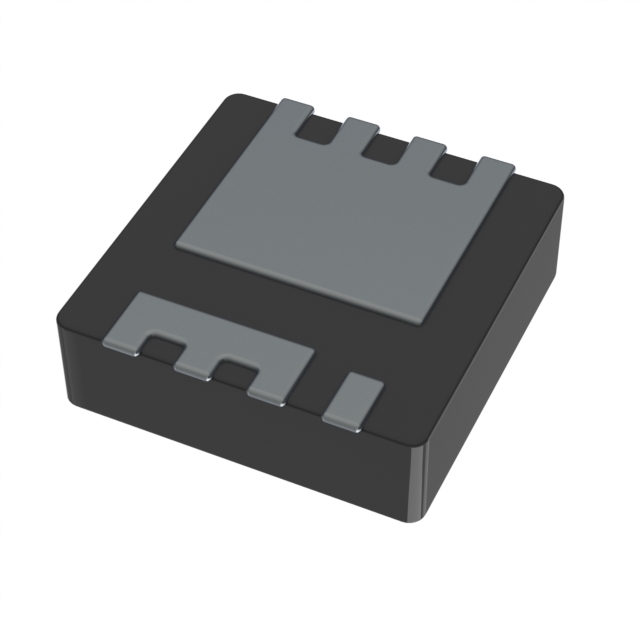

ISZ173N15NM6: 150V, OptiMOS™ 6 power MOSFET transistor, normal level, in SuperSO8 package

ISZ173N15NM6 specifications:

Series: OptiMOS™ 6

FET Type: N-channel

Technology: MOSFET (Metal Oxide)

Drain-Source Voltage (Vdss): 150 V

Current at 25°C - Continuous Drain (Id): 7.9A (Ta), 48A (Tc)

Drive Voltage (Maximum Rds On, Minimum Rds On): 8V, 15V

On-Resistance at Different Id and Vgs (Maximum): 16.3 mΩ @ 16A, 15V

Vgs(th) at Different Id (Maximum): 4V @ 35µA

Gate Charge (Qg) at Different Vgs (Maximum): 19.2 nC @ 10 V

Vgs (Maximum): ±20V

Input capacitance (Ciss) at different Vds (maximum): 1300 pF @ 75 V

Power dissipation (maximum): 25W (Ta), 94W (Tc)

Operating temperature: -55°C to 175°C (TJ)

Mounting type: Surface mount

Supplier device package: PG-TSDSON-8 FL

Package/housing: 8-PowerTDFN

ISZ173N15NM6 Product Features:

RDS(on) 42% lower than OptiMOS™

FOMg 20% lower than OptiMOS™ 5

Lowest Qrr in the industry at 150 V

Improved diode softness compared to OptiMOS™ 5

Vgs(th) strictly controlled within +/-500 mV range

High avalanche strength

Maximum Tj of 175°C

ISZ173N15NM6 Applications:

Energy storage systems

Telecom infrastructure

Photovoltaic

Industrial power supplies

Server power supplies
