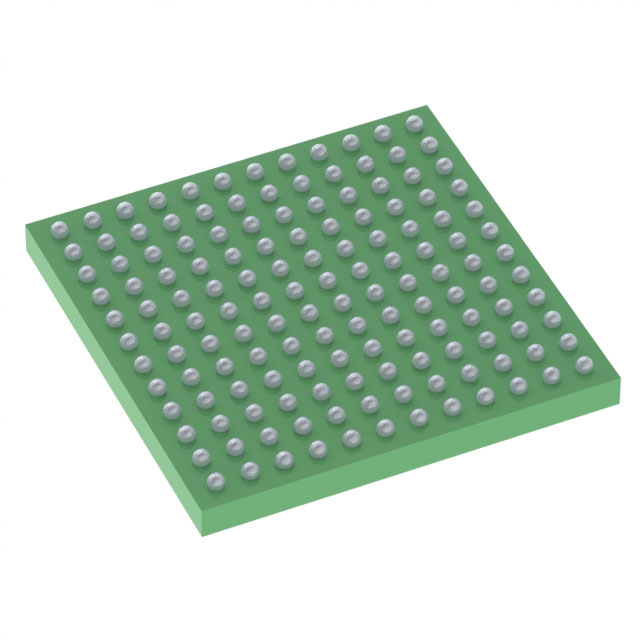

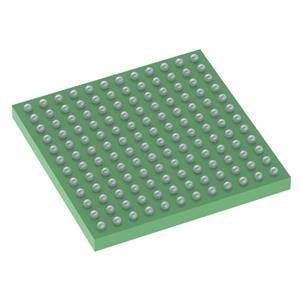

For picture reference, please see the specifications
< >

Commodity Model:DAC38RF93IAAVR

Trade Name:DAC38RF93IAAVR

Brand:TI

Particular Year:23+

Package:FCBGA-144

Delivery Date:New and Original

Stock: 3600pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
DAC38RF93IAAVR
Package
FCBGA-144
Describe
Dual 14-Bit 9GSPS 12x-24x Interpolation 6GHz and 9GHz PLL Digital-to-Analogue Converters (DACs)

Product Description

The DAC38RF93IAAVR is a high-performance, dual/single-channel, 14-bit, 9GSPS, RF-sampling digital-to-analog converter (DAC) capable of synthesising broadband signals in the 0GHz to 4.5GHz range. The high dynamic range allows the DAC38RFxx family to generate signals for a variety of applications, including 3G/4G signals for wireless base stations and radar.


The device features a low-power JESD204B interface with up to eight channels at a maximum bit rate of 12.5Gbps/channel and a composite input data rate of 1.25GSPS/channel. the DAC38RFxx provides two digital upconverters per channel with a variety of interpolation rate options. Digital quadrature modulators with frequency-flexible independent NCOs are available to support multi-band operation. An optional low jitter PLL/VCO simplifies DAC sample clock generation by allowing the use of a lower frequency reference clock.


Product Attributes

Product Category: Digital to Analogue Converters - DACs

Family: DAC38RF93

Resolution: 14 bit

Sample ratio: 9 GS/s

Number of Channels: 2 Channel

Stabilisation time: 1 ns

Output type: Voltage

Interface type: JESD204B

Minimum operating temperature: - 40 C

Maximum Operating Temperature: +85 C

Mounting Style: SMD/SMT

Package / Case: FCBGA-144

Construction: Current Source

DNL - Differential Nonlinearity: 0.5 LSB

Features: Ultra High Speed

Gain Error: 2 % FSR

INL - Integral Non-Linearity: 1 LSB

Humidity Sensitivity: Yes

Number of Converters: 2 Converter

Operating supply current: 1.51 A

Pd-Power dissipation: 4.894 W

Power consumption: 3.8 W

Reference type: External, Internal

Reference voltage: 900 mV

SFDR - Spurious Free Dynamic Range: 72 dB

Shutdown: No Shutdown

Supply voltage - max: 2.45 V

Supply Voltage - Min: - 2 V

Type: RF DAC


Applications

- Wireless communications

- Communication test equipment

- Arbitrary Waveform Generator

- Software Defined Military Radio

- Radar and Satellite Communications (SATCOM)
