The DAC81416RHAR is a family of 16-channel buffered high-voltage output digital-to-analog converters (DACs) with pin compatibility and 16-bit resolution.The DACx1416 includes a low-drift 2.5V internal voltage reference, eliminating the need for an external precision reference in most applications. The devices are monotonic and offer high linearity of ±1LSB INL.

Features

- High Performance

- Monotonic at 16-bit resolution

- INL: ±1LSB at 16-bit resolution (maximum)

- TUE: ±0.1% of FSR max.

- Integrated 2.5V precision internal reference

- Initial accuracy: ±2.5 mV (max)

- Low drift: 5ppm/°C (typical)

- Flexible Output Configuration

- Output ranges: ±2.5V, ±5V, ±10V, ±20V, 0 to 5V, 0 to 10V, 0 to 20V, 0 to 40V

- Differential output mode

- High drive capability: ±25mA with 1.5V swing relative to power rails

- Three dedicated A-B switching pins can be used to generate dither signals

- Analogue temperature output

-4 mV/°C sensor gain

- 50MHz SPI-compatible serial interface

- 4-wire mode with 1.7V to 5.5V operation

- Daisy chain operation

- CRC error checking

- Temperature range: -40°C to +125°C

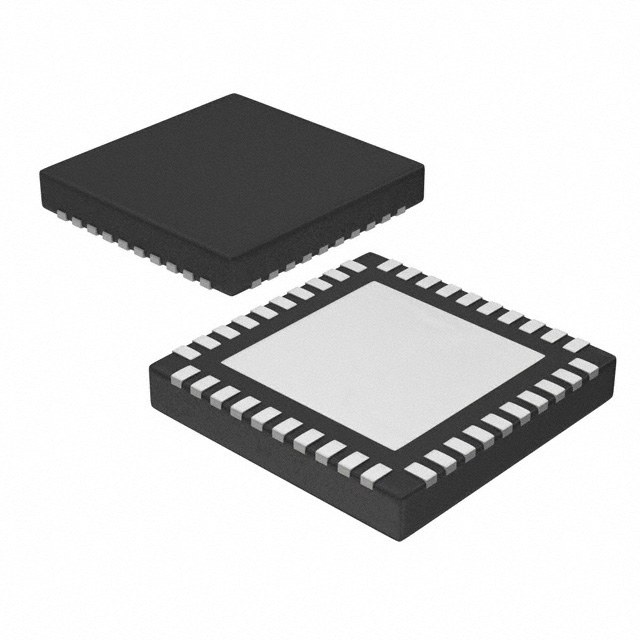

- Small package: 6mm × 6mm, 40-pin VQFN

Applications

- Intra-data centre interconnect (long-haul, underwater)

- Interconnection between data centres (metro)

- Optical modules

- Semiconductor testing

- Laboratory and field instrumentation

- Data Acquisition (DAQ)
