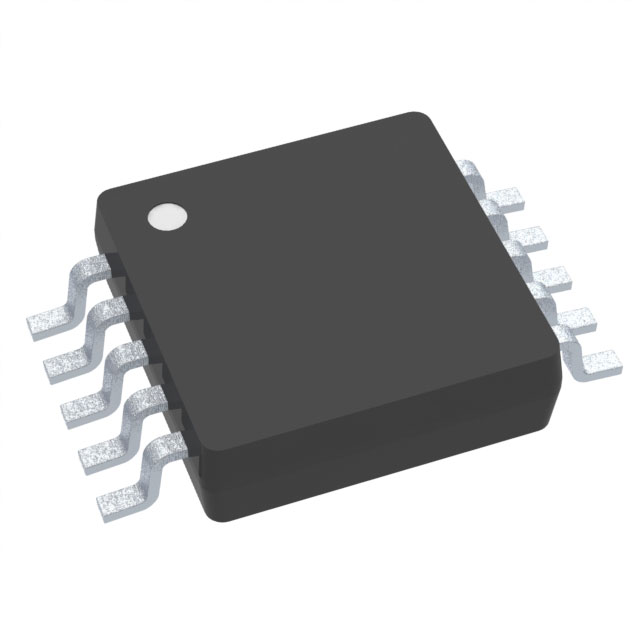

For picture reference, please see the specifications
< >

Commodity Model:DAC60501MDGSR

Trade Name:DAC60501MDGSR

Brand:TI

Particular Year:23+

Package:VSSOP-10

Delivery Date:New and Original

Stock: 5000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
DAC60501MDGSR
Package
VSSOP-10
Describe
True 12-bit, single-channel, SPI/I2C, DAC with accurate internal reference voltage

Product Description

The DAC60501MDGSR digital-to-analogue converters (DACs) are 12-bit, high-precision, low-power, voltage-output devices.The DACx0501 is monotonic by design and provides linearity below 1LSB.


Product Attributes

Number of bits: 12

Number of digital-to-analogue converters: 1

Build-up time : 5µs (standard)

Output Type: Voltage - Buffered

Differential outputs: None

Data Interface: I2C, SPI

Reference Type: External, Internal

Voltage - Powered, Analogue: 2.7V ~ 5.5V

Voltage - Powered, Digital: 2.7V ~ 5.5V

INL/DNL (LSB): ±1 (max), ±1 (max)

Architecture: R-2R

Operating Temperature: -40°C ~ 125°C

Package/Housing: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)

Supplier Device Package: 10-VSSOP

Mounting Type: Surface Mount


Applications

- Oscilloscopes and digitisers

- Parametric Measurement Unit (PMU)

- Data acquisition (DAQ)

- Flat Panel Displays (FPDs) Short Circuit Bar Graphic Generators

- Small cell base stations

- Analogue output modules

- Process analysis (pH, gas, concentration, force and humidity)

- Programmable DC power supplies
