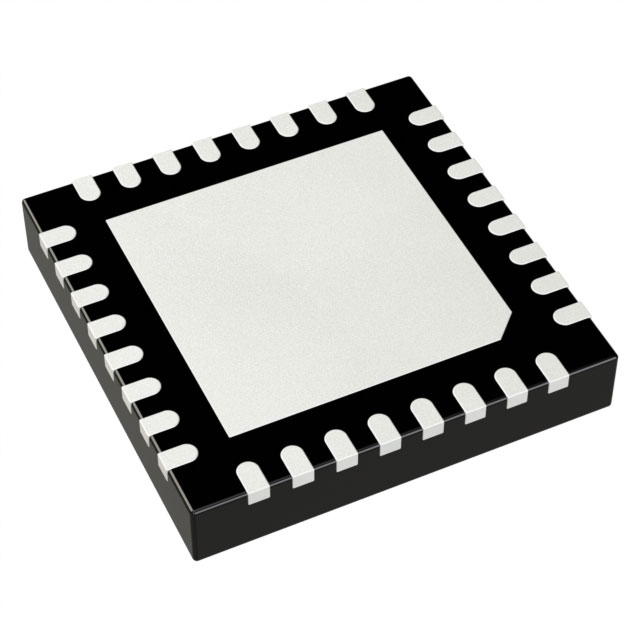

For picture reference, please see the specifications
< >

Commodity Model:DAC61404RHBR

Trade Name:DAC61404RHBR

Brand:TI

Particular Year:23+

Package:32-VQFN

Delivery Date:New and Original

Stock: 3000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
DAC61404RHBR
Package
32-VQFN
Describe
Four-channel, 12-bit, high-voltage output DAC with precision internal reference voltage

Product Description

The 12-bit DAC61404RHBR is a pin-compatible, four-channel, buffered, high-voltage output digital-to-analogue converter (DAC). These devices include a low drift 2.5V internal voltage reference, eliminating the need for an external precision reference in most applications. The devices are monotonic and provide high linearity of ±1LSB INL. In addition, these devices feature a per-channel detect pin to eliminate IR voltage drops and can detect ground bounce up to ±12V.


Specifications

Product Category: Digital to Analogue Converters - DACs

Series: DAC61404

Resolution: 12 bit

Number of Channels: 4 Channel

Stabilisation time: 22 us, 1.2 ms

Output Type: Voltage Buffered

Interface type: SPI

Analogue supply voltage: 4.5 V to 41.5 V

Digital supply voltage: 5 V

Minimum operating temperature: - 40 C

Maximum operating temperature: + 125 C

Mounting Style: SMD/SMT

Package / Case: VQFN-32

DNL - Differential Nonlinearity: 1 LSB

Gain error: 0.06 % FSR

INL - Integral non-linearity: 1 LSB

Humidity sensitivity: Yes

Operating supply current: +/- 7 mA, +/- 8 mA

Product: Precision DACs

Reference Type: Internal

Reference Voltage: 2.5 V

Shutdown: Shutdown

Factory Package Quantity: 3000

THD - Total Harmonic Distortion: 88 dB

Type: High Voltage Output DAC


Applications

- Semiconductor testing

- Laboratory and field instrumentation

- Analogue output modules

- Data Acquisition (DAQ)

- LCD Testing

- Servo Drive Control Modules
