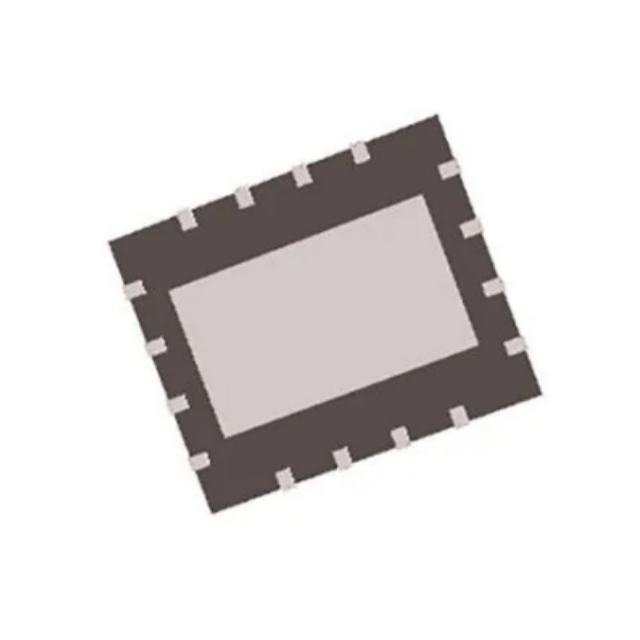

The NIS3071MT3TWG is a 4-channel, 60 V, 2.5 A per channel electronic fuse. It protects downstream loads from output short circuit, overload, and overcurrent events. Each channel is configured on the high voltage side and is independently controlled by the corresponding enable. Status communication is via a common low level active fault pin. This electronic fuse features an internal soft-start delay, trip time control and adjustable current limit settings common to all channels.

Functionality

● 4 independent channels, each with a current capacity of 2.5 A

● Thermal protection of power devices on each channel

● No external current shunt required

● High-level digital enable pin

● Open-drain common fault pin

● Adjustable overcurrent limit for all channels

● Adjustable turn-on time control

● NIV prefix for automotive and other applications requiring unique field and control change requirements

● AEC-Q100 certification and PPAP capability

● These devices are lead-free and RoHS compliant.

Applications

● Automotive body control modules

● Electrical distribution boxes

● Automotive zone controllers

● Load/harness protection

● Automotive low and medium power loads

● Power amplifier protection

● Motor Drive Protection

● Telecommunications equipment

● 8 V to 60 V industrial
