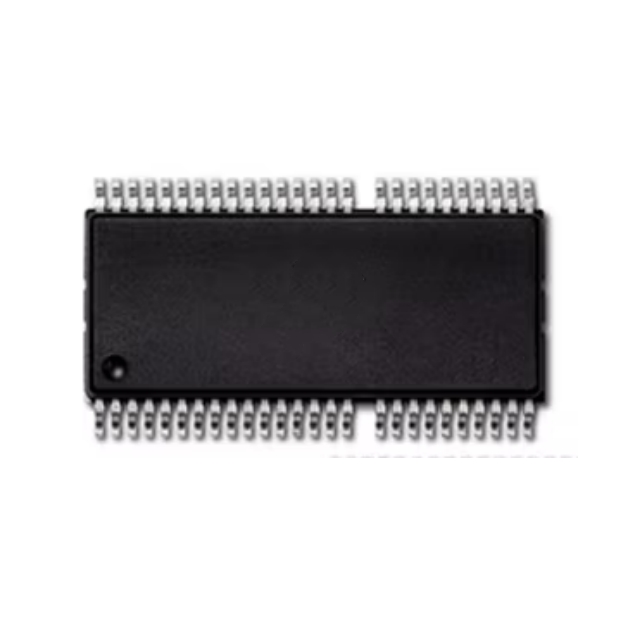

The MC17XS6400DEK is SMARTMOS' latest achievement in automotive lighting drivers. It offers the perfect combination of flexibility and reliability through daisy-chained SPI 5.0 MHz, extended digital and analogue feedback, safety and high reliability. To avoid switching off the device during inrush currents, it also closely tracks the dynamic overcurrent threshold profile of the load current. The current in each channel can be sensed by a programmable sense ratio. Whenever communication with an external microcontroller is interrupted, the device enters a faulty operation mode, but continues to operate and control the current.

Product Characteristics

Switch Type: General Purpose

Number of Outputs 6

Ratio - Input: Output: 1:6

Output Configuration: High Side

Output Type: N-Channel

Interface: SPI

Voltage - Load: 7V ~ 18V

Voltage - Supply (Vcc/Vdd): 4.5V ~ 5.5V

Current - Output (Max) 11A

Turn-On Resistance (Typ) 15 milliohms

Input Type: Non-Inverting

Features: PWM Input, Adjustable Slew Rate, Status Flags

Fault Protection: Current Limit (adjustable), Open Load Detection, Over Temperature, Over Voltage, Reverse Current, Short Circuit, UVLO

Operating Temperature: -40°C ~ 125°C (TA)

Grade: Automotive Grade

Certification: AEC-Q100

Mounting Type: Surface Mount

Delivery Range: 32-HSOP

Package/Housing: 32-SSOP (0.295", 7.50 mm wide) open panel

Applications

● Low-voltage automotive exterior lighting

● Incandescent light bulbs

● Light-emitting diodes (LEDs)

● HID xenon ballasts
