The NXP 32XSG series is an extended version of the 12XSF (12XSF) with a maximum voltage range of up to 32 V. These eXtreme switches are designed for controlling and diagnosing various types of loads such as lamps, DC motors, PLCs, etc. It integrates the flexibility of SPI with 5.0MHz daisy chain support and analogue feedback.

- It incorporates the flexibility, safety, and stability that comes from supporting 5.0 MHz daisy-chained SPI, extended digital and analogue feedback.

- With low on-resistance and high integration, it reduces the power consumption of the whole module and saves space.

- Both 5-channel output devices are hardware and SPI compatible.

MC07XSG517DEK Product Attributes:

Switch Type: General Purpose

Number of Outputs: 6

Ratio - Input:Output: 2:3

Output Configuration: High End

Output Type: N-Channel

Interface: SPI

Voltage - Load: 7V ~ 30V

Voltage - Supply (Vcc/Vdd): 4.5V ~ 5.5V

On-resistance (typical): 7mOhm

Input Type: Non-Inverting

Features: Internal PWM, Slew Rate Control, Status Flags

Fault Protection: Current Limit (Fixed), Open Load Detection, Over Temperature

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

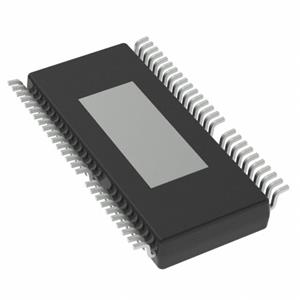

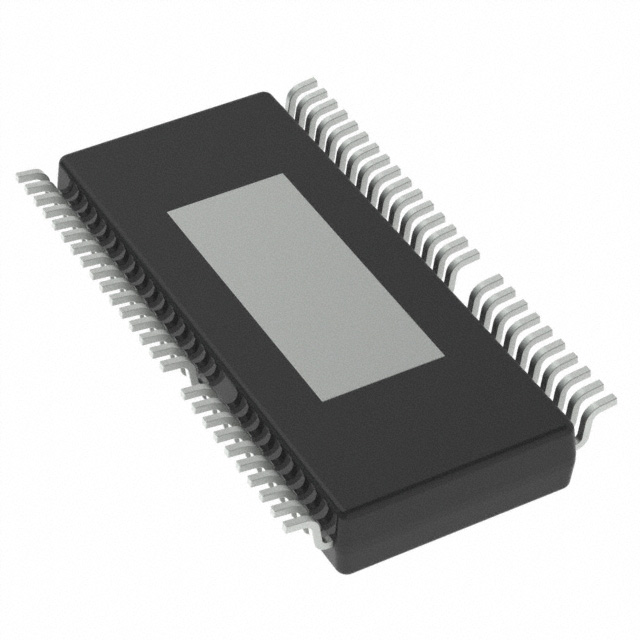

Supplier Device Package: 54-HSOP

Package/Housing: 54-SSOP (0.295", 7.50mm Width) Exposed Pad
