The MC07XS6517DEK is the latest in automotive lighting drivers. It belongs to an expanding family of products capable of controlling and diagnosing incandescent lamps and light-emitting diodes (LEDs) with greater precision. It offers flexibility through daisy-chained SPI 5.0 MHz, extended digital and analogue feedback, safety and ruggedness.

Features

Operating voltage range of 7.0 V to 18 V, sleep current

Less than 5.0 μA with extended voltage range of 6.0 V to 28 V

5.0 MHz 16-bit SPI overcurrent characteristic curve control with channel controls including: 8-bit PWM duty cycle, output ON and OFF open load detection, thermal shutdown and warning, and error reporting

Programmable overcurrent trip thresholds

Enhanced output current sensing with programmable sync signal and battery voltage feedback

Watchdog and limp home modes

External intelligent power switch control

Product Attributes

Switch Type: General Purpose

Number of Outputs: 6

Ratio - Input:Output: 2:3

Output Configuration: High End

Output type: N-channel

Interface: SPI

Voltage - Load: 7V ~ 18V

Voltage - Supply (Vcc/Vdd): 4.5V ~ 5.5V

Current - Output (Max): 5.5A, 11A

On Resistance (Typ): 7mOhm, 17mOhm

Features: Internal PWM

Fault Protection: Current Limit (Fixed), Open Load Detection, Over Temperature

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

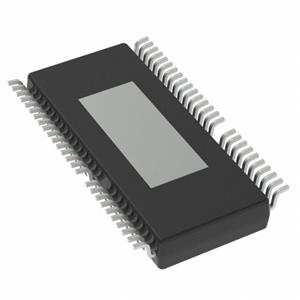

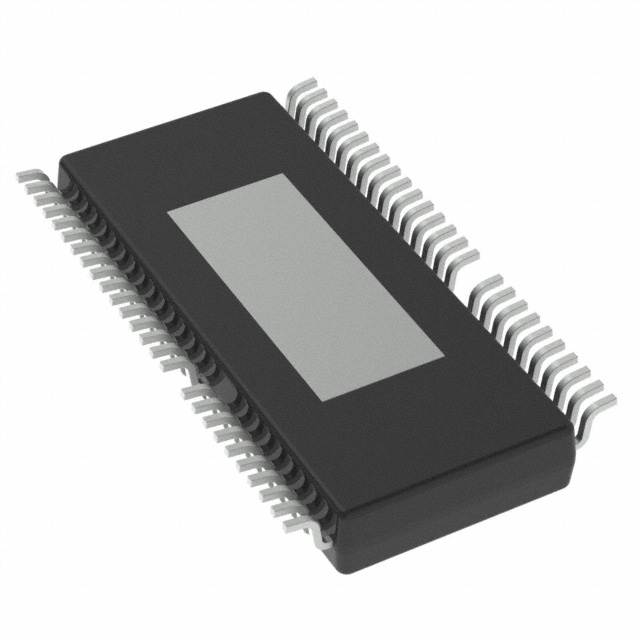

Supplier Device Package: 54-HSOP

Package/Housing: 54-SSOP (0.295", 7.50mm Width) Exposed Pad
