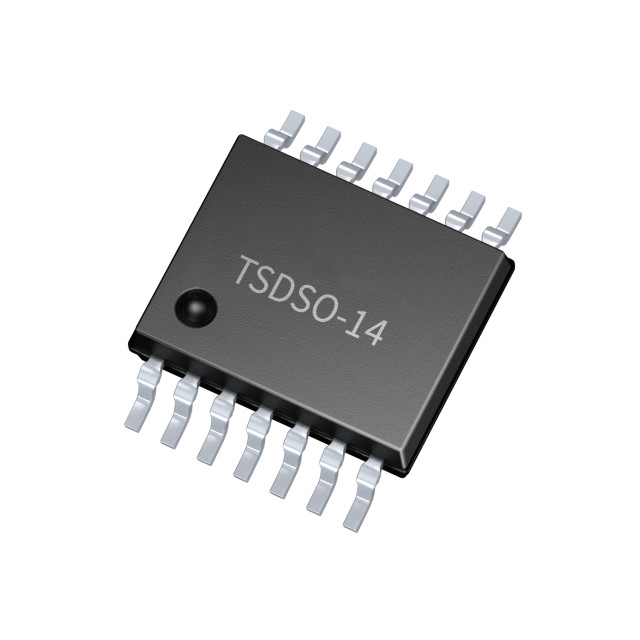

The TLE75004EPD is a four-channel low-voltage side power switch in PG-TSDSO-14 package that provides embedded protection. It is specifically designed to control relays and leds in automotive and industrial applications. The Serial Peripheral Interface (SPI) is used to control and diagnose loads as well as devices. For direct control and PWM, there are two input pins connected to two outputs by default. Other or different outputs can be controlled by the same input pin (programmable via SPI).

Product attribute

Switch type: Relay, solenoid driver

Output number: 4

Ratio - Input: Output: 1:4

Output configuration: Low end

Output type: N channel

Interface: SPI

Voltage - load: 3V ~ 28V

Voltage - power supply (Vcc/Vdd) : 3V ~ 5.5V

Current - Output (Max) : 470mA

On-resistance (typical) : 1 ohms

Input type: -

Characteristics: pressure swing rate controlled type

Fault protection: current limiting (fixed), over temperature, over voltage

Operating temperature: -40°C ~ 150°C (TJ)

Class: Automobile class

Qualification: AEC-Q100

Mounting type: Surface mount type

Supplier device package: PG-TSDSO-14-41

Package/housing: 14-TSSOP (0.154", 3.90mm wide) bare pad

Basic product number: TLE75004
