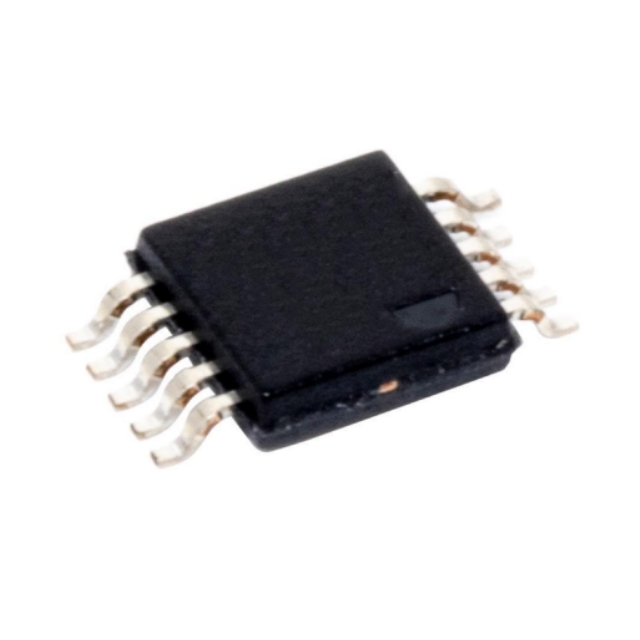

The LT8672EMS is an active rectifier controller for reverse input protection. It drives an external N-channel MOSFET in place of a power Schottky diode. Its very low quiescent current and fast transient response meet the demanding requirements of automotive applications with AC input signals up to 100kHz. The signal is rectified and the external FETs minimise power dissipation, simplifying thermal management on the PCB. With a voltage drop of only 20mV, the solution simplifies the minimum input voltage requirement for cold start.

Characteristics

● Reverse input protection to -40V

● Improved performance compared to Schottky diodes:

● Power consumption reduction of >90%

● Reduced voltage drop to 20mV

● Ultra-fast transient response:

● Rectified 6VP-P (up to 50kHz)

● Rectified 2VP-P (up to 100kHz)

● Wide operating voltage range: 3V to 42V

● Low quiescent current (during operation): 20µA

● Low shutdown current: 3.5µA

● Precise enable pin threshold: 1.21V

● Compliant with AEC-Q100 for automotive applications

● Small 10-pin MSOP package, 10-pin 3mm × 2mm DFN package, and 3mm × 2mm side-wettable DFN package

Applications

● Automotive battery protection

● Industrial power supplies

● Portable instrumentation
