ISO2H823V25 ISOFACE™ current-isolated high-side switches set a new standard for diagnostics in industrial control applications. ISO2H823V has integrated 2.5kV current isolation and therefore meets the requirements of IEC 61131-2 for enhanced isolation. Each of the eight channels has 5x diagnostic monitoring capabilities, including open load (active mode driver on, inactive mode driver off), VBB short, overcurrent (=GND short), and overheat.

Product attribute

Switch type: Universal

Output number: 8

Ratio - Input: Output: 1:8

Output configuration: High end

Output type: P channel

Interface: SPI, parallel

Voltage - load: 11V ~ 35V

Voltage - supply (Vcc/Vdd) : 2.75V ~ 3.6V

Current - Output (Max.) : -

On-resistance (typical) : 210 milliohm

Input type: -

Features: -

Fault protection: Current limiting (fixed), overtemperature, UVLO

Operating temperature: -40°C ~ 85°C (TA)

Mounting type: Surface mount type

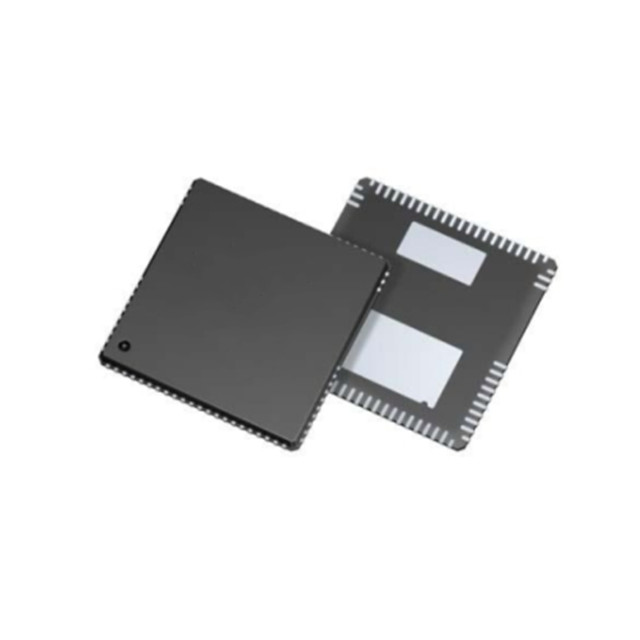

Supplier device package: PG-VQFN-70-2

Package/housing: 70-VFQFN bare pad

Basic product number: ISO2H823
