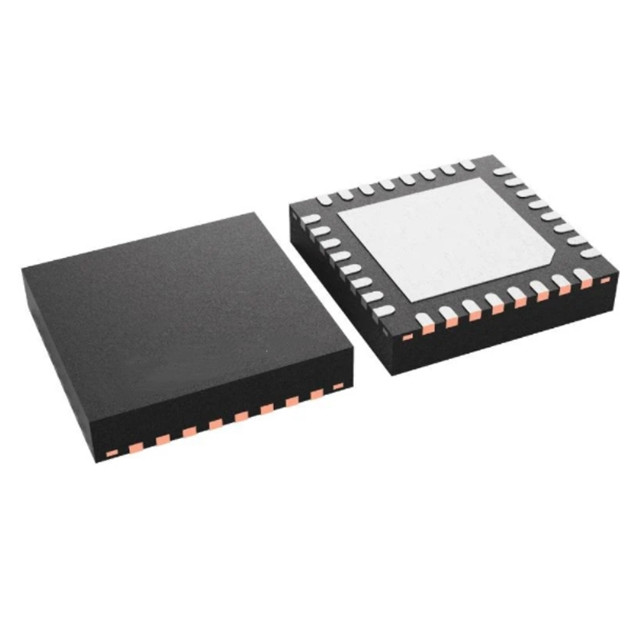

For picture reference, please see the specifications
< >

Commodity Model:DAC81404RHBR

Trade Name:DAC81404RHBR

Data Manual:DAC81404RHBR.pdf

Brand:TI

Particular Year:23+

Package:32-VQFN

Delivery Date:New original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
DAC81404RHBR
Package
32-VQFN
Describe
Four-channel, 16-bit, high-voltage output DAC 32VQFN with precision internal reference

Product Description

The 16-bit DAC81404RHBR is a pin-compatible four-channel buffered high-voltage output digital-to-analog converter (DAC). The device includes a low-drift 2.5V internal voltage reference, which eliminates the need for an external precision reference in most applications. This device is monotonic and provides a high linearity of ±1LSB INL. In addition, the device uses a per-channel detection pin to eliminate IR pressure drops and can detect ground bombs up to ±12V.


specification

Number of digits: 16

Number of digital to analog converters: 4

Establishment time: 1.2ms

Output type: voltage-buffer

Differential output: None

Data interface: Serial, SPI

Reference type: Internal

Voltage - power supply, analog: 4.5V ~ 41.5V

Voltage - power supply, number: 4.5V ~ 5.5V

INL/DNL (LSB) : ±1 (Max), ±2 (Max)

Architecture: R-2R

Operating temperature: -40°C ~ 125°C

Package/housing: 32-VFQFN bare pad

Supplier Package: 32-VQFN (5x5)

Mounting type: Surface mount type
