The MCF8329A1IREER provides a single-chip, code-free, senser-free FOC solution for applications that drive brushless direct current motors (BLDC) or Permanent magnet synchronous motors (PMSM). The MCF8329A offers three half-bridge gate drivers, each capable of driving both high-end and low-end N-channel power MOSFETs. The device utilizes an internal charge pump to generate the correct gate drive voltage and enhances the high-end MOSFETs with a bootstrap circuit. Built-in trickle charge pump supports 100% duty cycle. The MCF8329A is available with a single power supply and supports a wide input power range from 4.5 to 60 V.

specification

Drive configuration: half bridge

Channel type: 3 phases

Number of drives: 6

Gate type: N channel MOSFET

Voltage - Power supply: 4.5V ~ 60V

Current - Peak output (input, pull out) : 1A, 2A

Input type: non-inverting

High voltage side voltage - Max (bootstrap) : 80 V

Rise/fall time (typical value) : -

Operating temperature: -40°C ~ 125°C (TA)

Grade: -

Mounting type: Surface mount type

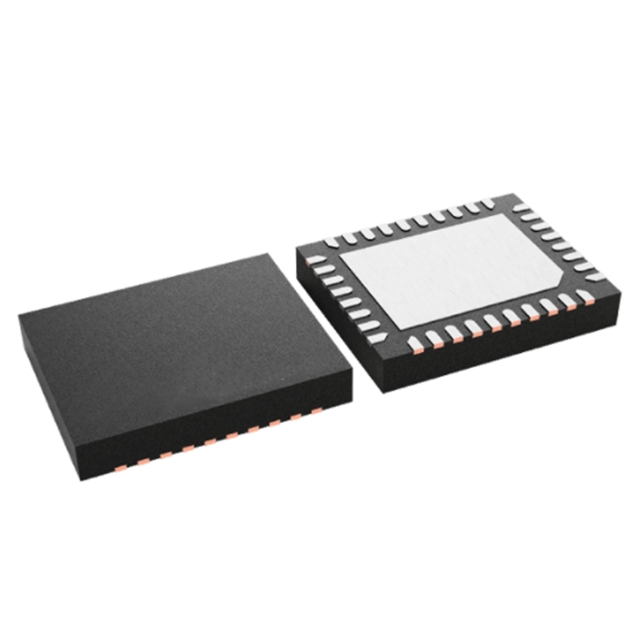

Supplier Package: 36-WQFN (5x4)
