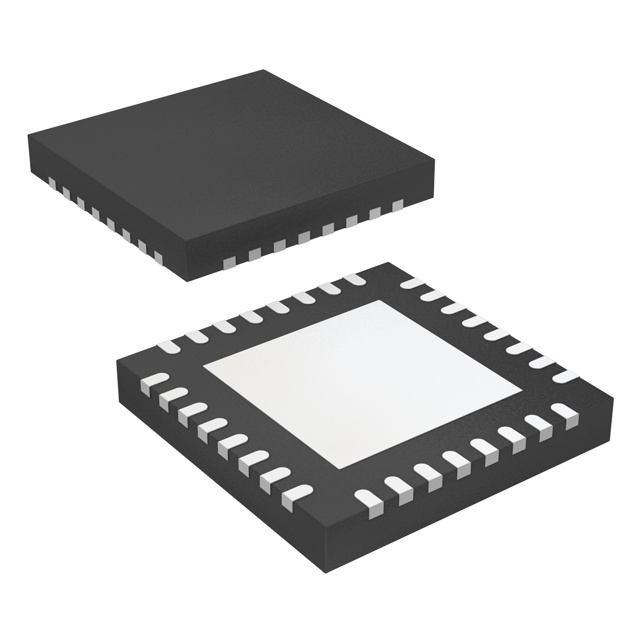

For picture reference, please see the specifications
< >

Commodity Model:MCF8315C1VRRYR

Trade Name:MCF8315C1VRRYR

Data Manual:MCF8315C1VRRYR.pdf

Brand:TI

Particular Year:23+

Package:32-WQFN

Delivery Date:New original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
MCF8315C1VRRYR
Package
32-WQFN
Describe
Sensorless Field Oriented Control (FOC) three-phase BLDC motor driver 32WQFN

Product Description

The MCF8315C1VRRYR offers A single-chip, code-free, senser-free FOC solution for customers driving speed-controlled 12 to 24 V brushless DC motors (BLDC) or Permanent magnet synchronous motors (PMSM) with peak currents up to 4 A. The MCF8315C integrates three ½ Bridges with an absolute maximum capacity of 40 V and a low RDS (ON) of 250/265 mΩ (high end + low end FET). The MCF8315C integrates a power management circuit, including a voltage-adjustable step-down regulator (3.3V / 5V, 170 mA) and an LDO (3.3V /20 mA) that can be used to power external circuits.


specification

Motor type - Step: polyphase

Motor Type - AC, DC: Brushless DC (BLDC)

Features: Driver - fully integrated, control and power level

Output configuration: Half bridge (3)

Technology: NMOS

Step resolution: -

Application: General purpose

Current - Output: 4A

Voltage - Power supply: 4.5V ~ 35V

Voltage - load: 4.5V ~ 35V

Operating temperature: -40°C ~ 125°C (TA)

Grade: -

Qualification: -

Mounting type: Surface mount, wets flanks

Package/housing: 32-QFN bare pad

Supplier Package: 32-WQFN (6x4)


Associated Products

Model

Brand

Package

Quantity

Describe

A4950ELJTR

Allegro

SOIC-8

18000

Motor Driver DMOS Analogue 8-SOIC-EP

DRV8421BDGQR

TI

HVSSOP-10

3000

18V, 2A dual-channel H-bridge motor driver

L99MH98

ST

VQFN-48

3000

Integrated eight-channel half-bridge pre-driver NMOS SPI 48-VFQFPN (7x7)

PWD5T60TR

ST

VFQFPN-36

3000

Compact high-voltage three-phase power stage driver integrated with a gate driver

PAC55723QM

Qorvo

TQFN-48

3000

72V BLDC controller and driver, integrated multi-mode power manager and configurable AFE

PAC55724

Qorvo

TQFN-64

2000

72V BLDC controller and driver, integrated multi-mode power manager and configurable AFE

PAC55713

Qorvo

TQFN-64

2000

72V BLDC controller and driver, featuring an integrated multimode power manager and configurable AFE

PAC55712

Qorvo

TQFN-64

2000

72V BLDC controller and driver, integrated multi-mode power manager and configurable AFE

MPQ6631HGLTE

MPS

TQFN-26

2000

35V input, 3A peak phase current, three-phase BLDC motor driver

SLG7MD47701V

Renesas

20-STQFN

1500

Full-bridge/half-bridge PWM motor driver 20-STQFN (2x3)
