The MCF8316A1VRGFR offers single-chip, code-free, senser-free FOC solutions for speed control 12 to 24 V brushless DC motors (BLDC) or Permanent magnet synchronous motors (PMSM) with peak currents up to 8 A. The MCF8316A integrates three 1/2H Bridges with a 40V absolute maximum voltage and 95mΩ ultra-low RDS(ON) (high side and low side combined). The power management series of adjustable step-down regulators and Ldos are capable of generating 3.3V or 5.0V voltage rails that can be used to power external circuits.

Product attribute

Motor type - Step: polyphase

Motor Type - AC, DC: Brushless DC (BLDC)

Function: Controller - Speed

Output configuration: Half bridge (3)

Interface: I2C, PWM

Technology: NMOS

Step resolution: -

Application: -

Current - Output: 8A

Voltage - Power supply: 4.5V ~ 35V

Voltage - load: 4.5V ~ 35V

Operating temperature: -40°C ~ 125°C (TA)

Class: Automobile class

Mounting type: Surface mount type

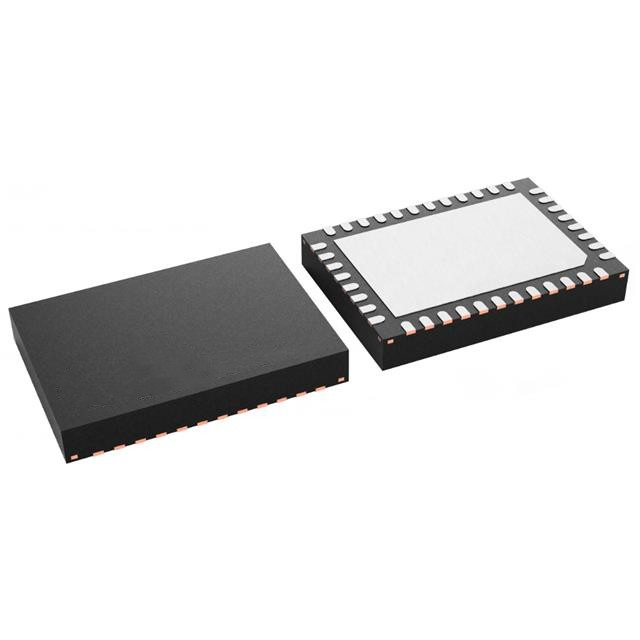

Package/housing: 40-VFQFN bare pad

Supplier Package: 40-VQFN (7x5)

Basic product number: MCF8316
