The MCP3461RT-E/NC device is a 16-bit trigonometric integrated analog-to-digital converter (ADC) with programmable data rates of up to 153.6 kSPS. It offers integrated features such as internal reference voltage sources, internal oscillators, temperature sensors, and burn-out sensor detection to reduce the number of system components and total solution cost. The ADC is fully configurable with an oversampling rate (OSR) ranging from 32 to 98304 and a gain range of 1/3x to 64x.

Product Attributes:

Number of digits: 16

Sampling rate (per second) : 153.6k

Input number: 1

Input type: differential, single-ended

Data interface: SPI

Configuration: MUX-ADC

Ratio -S /H:ADC: 0:1

Number of A/D converters: 1

Architecture: trigonometric integration

Reference type: External, internal

Voltage - power supply, analog: 2.7V ~ 3.6V

Voltage - power supply, digital: 1.8V ~ 3.7V

Features: Internal oscillator, temperature sensor

Operating temperature: -40°C ~ 125°C

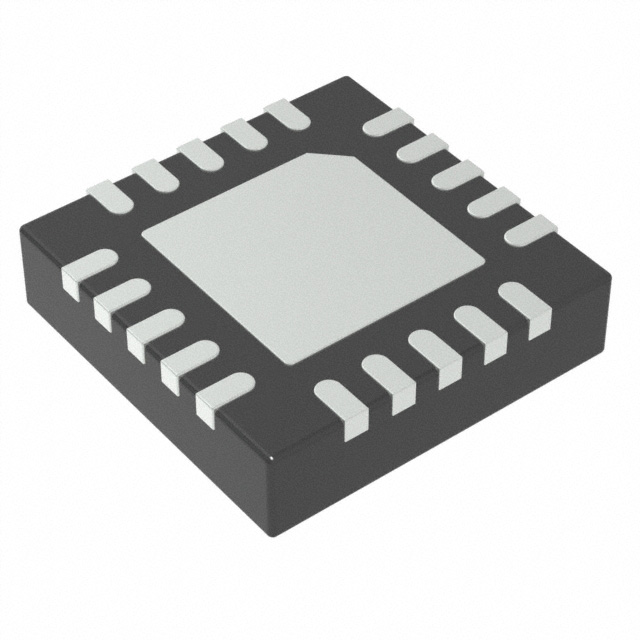

Package/housing: 20-UFQFN bare pad

Supplier Package: 20-UQFN (3x3)

Mounting type: Surface mount type

Basic product number: MCP3461
