The LTC3307BHV is a very small, high efficiency, low noise, monolithic synchronous 3A step-down DC/DC converter that operates from 2.25V to 5.5V. Controlled in a constant frequency, peak current mode, with a switching frequency of 3MHz to 10MHz, and a minimum on-time as low as 22ns, the regulator features small external components for fast transient response. The quiet switching architecture minimises EMI emissions. Operate in forced continuous or pulse-skipping modes for low noise, or in low ripple burst mode for high efficiency at light loads.

Features

● Pin compatible with LTC3308(4A) and LTC3309(6A)

● High efficiency: 8mΩ NMOS, 31mΩ PMOS

● Programmable frequency: 3MHz to 10MHz

● Miniature inductors and capacitors

● Peak current mode control

● 22ns minimum on-time

● Wide bandwidth, fast transient response

● Silent Switcher® architecture

● Ultra-low EMI emissions

● Low-ripple Burst Mode® operation with 40µA IQ

● Safe tolerance for inductor saturation during overloads

● VIN range: 2.25V to 5.5V

● VOUT accuracy: ±1% over temperature range

● Accurate 400mV enable threshold, 1μA at shutdown

● Well-supplied, internally compensated, and soft-started

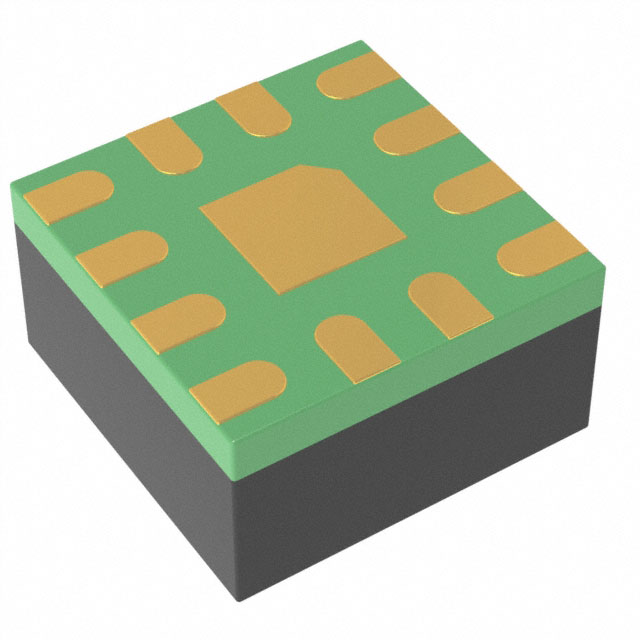

● Thermally enhanced 2mm × 2mm LQFN package

● AEC-Q100 certified for automotive applications

Applications

● Optical networks, servers, telecom

● Automotive, industrial, communications

● Distributed DC power systems (POL)

● FPGA, ASIC, µP core power supplies
