The LT8582IDKD is a dual independent channel PWM DC/DC converter with power good pinout and built-in fault protection to help guard against input overvoltage and overheat conditions. Each channel consists of a 42V master-slave switch that can be tied together for a total current limit of 3A, and each channel can be easily configured in boost, SEPIC, inverting, or flyback configurations. The two channels combine to produce 12V and -12V outputs from a 5V input for a combined output power of 14.4W combined output power. In addition, the slave switch allows the device to be configured as a high voltage, high power charge pump topology.

Product Features

Function: Boost, Boost/Buck

Output Configuration: Positive or negative

Topologies: Boost, Cuk, Flyback, SEPIC

Output Type: Adjustable

Number of Outputs: 2

Voltage - Input (Min): 2.5 V

Voltage - Input (Max): 2.5 V 22 В

Voltage - output (min/fixed): 2.5 В 2,5 В

Voltage - output (max.): 42 V (switched)

Current - Output: 3.3 A (switched)

Frequency - Switching: 200 kHz ~ 2.5 MHz

Synchronous Rectifier: None

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

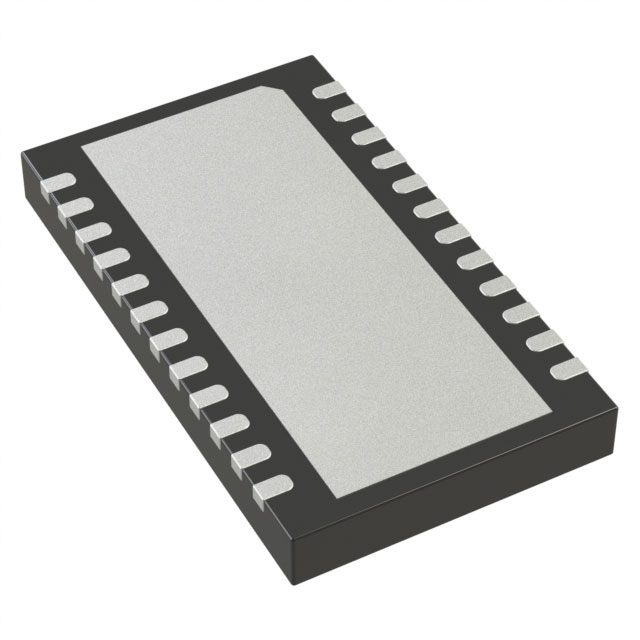

Package/Enclosure: 24-WFDFN with Open Area

Power Supply Included: 24-WFDFN (7x4)

Applications

● Local power supplies

● Vacuum Fluorescent Display (VFD) bias power supplies

● TFT-LCD bias power supplies

● Automotive engine control unit (ECU) power supplies
