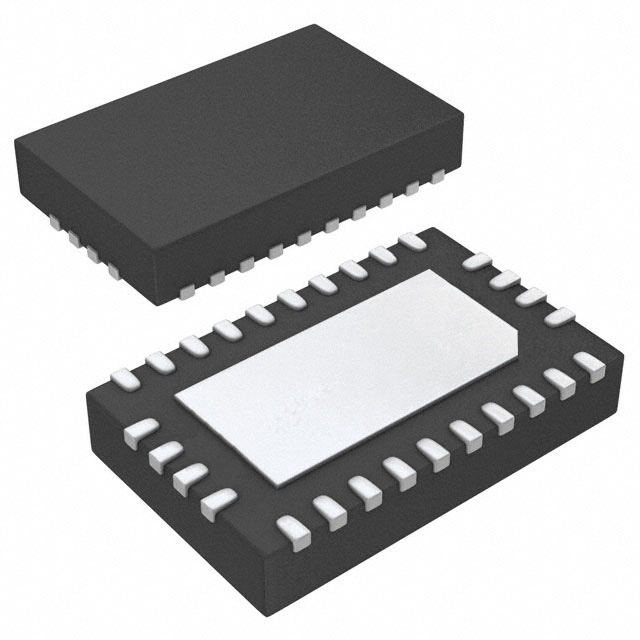

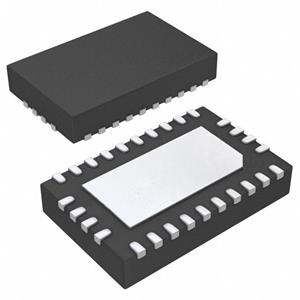

For picture reference, please see the specifications
< >

Commodity Model:LT8620EUDD

Trade Name:LT8620EUDD

Data Manual:LT8620EUDD.pdf

Brand:ADI

Particular Year:23+

Package:24-WFQFN

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
ADI
Model
LT8620EUDD
Package
24-WFQFN
Describe
Buck Switching Regulator IC Positive Adjustable 0.97V 1 Output 2A 24-WFQFN Exposed Pad

Product Description

The LT8620EUDD is a compact, high efficiency, high speed synchronous monolithic buck switching regulator that accepts a wide input voltage range up to 65V and consumes only 2.5µA of quiescent current. Top and bottom power switches and all necessary circuitry are provided to minimise the need for external components. Low ripple burst mode operation achieves high efficiency at very low output current while maintaining output ripple below 10mVP-P. The SYNC pin allows synchronisation with an external clock.


Product Features

Function: Water Tank

Output Configuration: Positive

Topology: Buck

Output Type: Adjustable

Number of Outputs: 1

Voltage - input (min): 3,4 В

Voltage - input (max.): 65 В

Voltage - output (min/fixed): 0,97 В

Voltage - output (max.): 64,75 В

Current - output: 2A

Frequency - Switching: 200kHz ~ 2.2MHz

Synchronous Rectifier: Yes

Operating Temperature: -40°C ~ 125°C (TJ)

Mounting Type: Surface Mount

Package / Case: 24-WFQFN with open area

Delivery incl.: 24-WFQFN (3x5)


Applications

● Automotive and industrial goods

● General purpose buck

● GSM power supplies
