The LP5860RKPR 11x18 LED matrix driver integrates 11 MOSFETs for up to 198 LED points or 66 RGB LEDs.The LP5860 supports both analogue dimming and PWM dimming methods. For analogue dimming, each LED point can be adjusted in 256 steps. For PWM dimming, an integrated 8-bit or 16-bit configurable PWM generator allows smooth dimming control with no audible noise. Each LED point can also be arbitrarily mapped to an 8-bit group PWM for dimming control.

Product Specification

Type: Linear

Topology: Constant Current

Internal Switch: Yes

Number of Outputs: 18

Voltage - Supply (Min): 2.7V

Voltage - Supply (Max): 5.5V

Current - Output/Channel: 50mA

Frequency: 32MHz

Dimming: Analogue, PWM

Applications: General Purpose

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

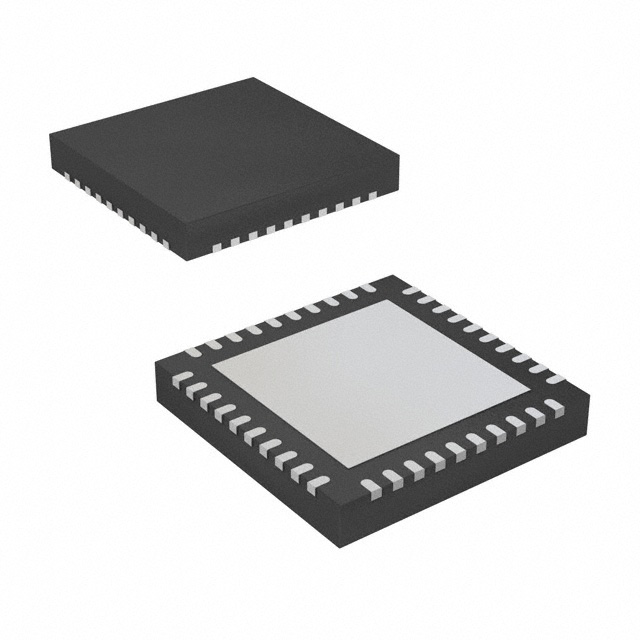

Package/Housing: 40-VFQFN Exposed Pad

Supplier Device Package: 40-VQFN (5x5)

Applications

LED animation and indication

Keyboards, mice and gaming accessories

Large and smart appliances

Smart speakers, wired and wireless speakers

Audio mixers, DJ equipment and broadcasting

Access devices, switches and servers

Optical Module Constant Current Trap
