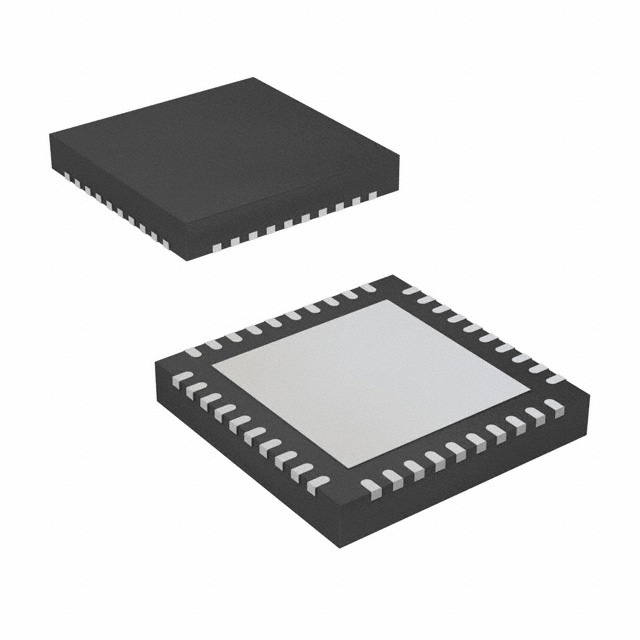

The LP5860MRKPR devices are a family of high performance LED matrix drivers. The devices integrate 18 constant current traps with N (N = 1/2/4/6/8/11) switching MOSFETs to support N × 18 LED dots or N × 6 RGB LEDs.The LP5860 integrates 11 MOSFETs to support up to 198 LED dots or 66 RGB LEDs.

The LP5860 supports both analogue and PWM dimming methods. For analogue dimming, each LED point can be adjusted in 256 steps. For PWM dimming, an integrated 8-bit or 16-bit configurable PWM generator provides smooth dimming control with no audible noise. Each LED point can also be arbitrarily mapped to an 8-bit group PWM for common dimming control.

Specification

Type: Linear

Topology: Constant Current

Internal Switch: Yes

Number of Outputs: 18

Voltage - supplied (minimum): 2.7V

Voltage - Supply (Max): 5.5V

Current - Output/Channel: 50mA

Frequency: 32MHz

Dimming: Analogue, PWM

Application: General Purpose

Operating Temperature: -55°C ~ 125°C (TA)

Mounting Type: Surface Mount

Package/Housing: 40-VFQFN Exposed Pad

Supplier Device Package: 40-VQFN (5x5)

Applications

- LED animation and indication for the following devices:

- Keyboards, mice and gaming accessories

- Large and smart home appliances

- Smart speakers, wired and wireless speakers

- Mixers, DJ equipment, and broadcasting

- Access devices, switches, and servers

- Constant current traps for optical modules
