The TPS65301QPWPRQ1 power supply is a combination of a single switch-mode buck power supply and three linear regulators. It is a monolithic high-voltage switching regulator with an integrated 1.2A peak current switch, 45V power metal-oxide-semiconductor field-effect transistors (MOSFETs), a low-voltage linear regulator, two voltage regulator controllers, and a protected sensor supply. There is a voltage monitor that monitors the output of the switched mode power supply, the 3.3V linear regulator and the 1.2V linear regulator.

Product Attributes

Topologies: Buck (1), Linear (LDO) (3)

Number of Outputs 4

Frequency - Switching: 2MHz ~ 3MHz

Voltage/Current - Output 1: 5.45V, 1.2A

Voltage/Current - Output 2: 5V, 350mA

Voltage/Current - Output 3: Controller

With LED Driver: No

With Display: Yes

With Sequencer: No

Voltage - Supply: 5.6V ~ 40V

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

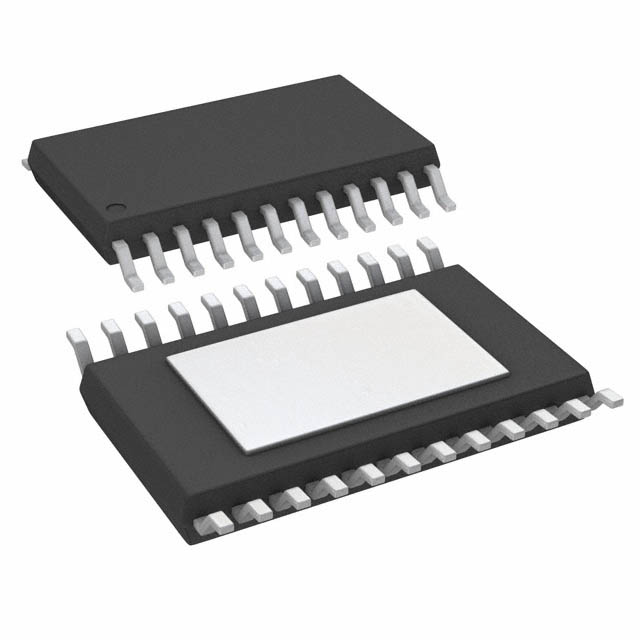

Package/Case: 24-PowerTSSOP (0.173 inches, 4.40 mm wide)

Supplier Device Package: 24-HTSSOP

Applications

● Power supplies for TMS570 microcontrollers

● Power supplies for C28XXX DSPs

● Automotive general purpose power supplies
