The LP873347RHDR is designed to meet power management requirements in industrial applications. The device features two step-down DC/DC converters that can be configured as a single two-phase regulator or two single-phase regulators, two linear regulators, and two general purpose digital output signals. The device is controlled by an I2C compatible serial interface and enable signals. Automatic PWM/PFM (AUTO mode) operation combined with automatic phase increase/decrease provides high efficiency over a wide output current range. Support for remote voltage sensing (differential in a two-phase configuration) compensates for the IR voltage drop between the regulator output and the point of load (POL) to improve output voltage accuracy.

Product Attributes

Topologies: Buck (2), Linear (LDO) (2)

Number of Outputs 4

Frequency - Switching: 12 MHz

Voltage/Current - Output 1: 0.7V ~ 3.36V, 3A

Voltage/Current - Output 2: 0.7V ~ 3.36V, 3A

Voltage/Current - Output 3: 0.8V ~ 3.3V, 300mA

With LED Driver: None

With Monitor: No

With Sequencer: No

Voltage - Supply: 2.5V ~ 5.5V

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount, Wetted Side

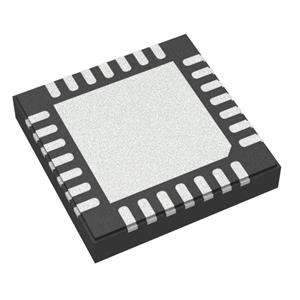

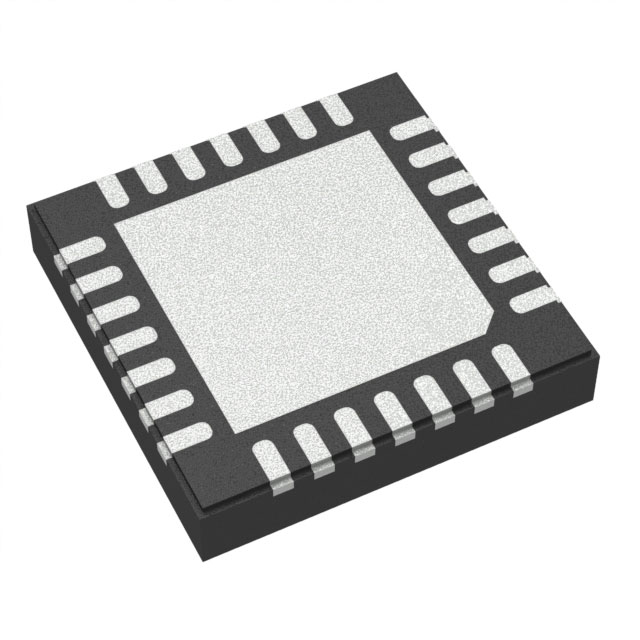

Package/Housing: 28-VFQFN with Open Area

Scope of delivery: 28-VFQFN (5x5)

Applications

● Industrial applications

● Industrial equipment

● Test and measurement
