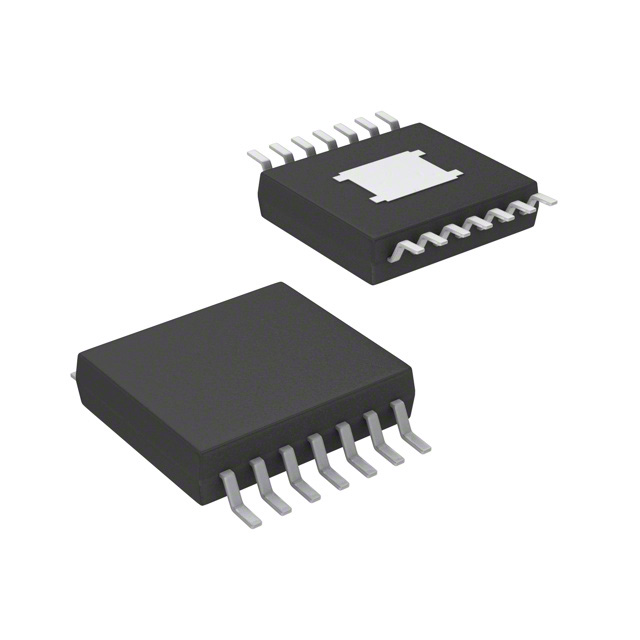

The TPS65321AQPWPRQ1 consists of a high-VIN DC-DC step-down converter (buck regulator) with an adjustable switching-mode frequency of 100 kHz to 2.5 MHz and a high-VIN 280 mA low-dropout (LDO) regulator. The buck regulator has an input range of 3.6 V to 36 V, and the LDO regulator has an input range of 3 V to 36 V. The buck regulator integrates a high-side MOSFET with an active-low, open-drain power-good output pin (nRST).

Product Attributes

Topology: Buck (1), Linear (LDO) (1)

Number of Outputs: 2

Frequency - Switching: 100kHz ~ 2.5MHz

Voltage/Current - Output 1: 1.1V ~ 20V, 3.2A

Voltage/Current - Output 2: 1.1V ~ 5.5V, 280mA

With LED Driver: No

With Monitor: Yes

With Sequencer: No

Voltage - Supply: 3V ~ 36V

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

Package/Case: 14-PowerTSSOP (0.173", 4.40 mm wide)

Delivery Range: 14-HTSSOP

Applications

● Automotive infotainment systems and clusters

● Advanced Driver Assistance Systems (ADAS)

● Automotive telematics, eCall
