The LP87332BRHDRQ1 is designed to meet power management requirements in automotive applications. The device features two step-down DC/DC converters, two linear regulators, and two general purpose digital output signals. The device is controlled by an I2C compatible serial interface and enable signals. Automatic PWM/PFM (AUTO mode) operation provides high efficiency over a wide output current range. Remote voltage sensing is supported to compensate for the IR voltage drop between the regulator output and the point of load (POL) to improve output voltage accuracy.

Features

● Ambient operating temperature range of -40°C to +125°C

● Input voltage: 2.8V to 5.5V

● Two high-efficiency step-down DC/DC converters:

● Output voltage: 0.7V to 3.36V

● Maximum output current 3A

● Programmable output voltage slew rate range: 0.5 mV/µs to 10 mV/µs

● Switching frequency 2 MHz

● Spread spectrum mode and phase interleaving to reduce EMI

● Two linear regulators

● Input voltage: 2.5V to 5.5V

● Output voltage: 0.8V to 3.3V

● Maximum output current 300mA

● Configurable general-purpose output signals (GPO, GPO2)

● Interrupt function with programmable masks

● Programmable normal power signal (PGOOD)

● Output short circuit and overload protection

● Overheating warning and protection

● Overvoltage protection (OVP) and undervoltage lockout (UVLO)

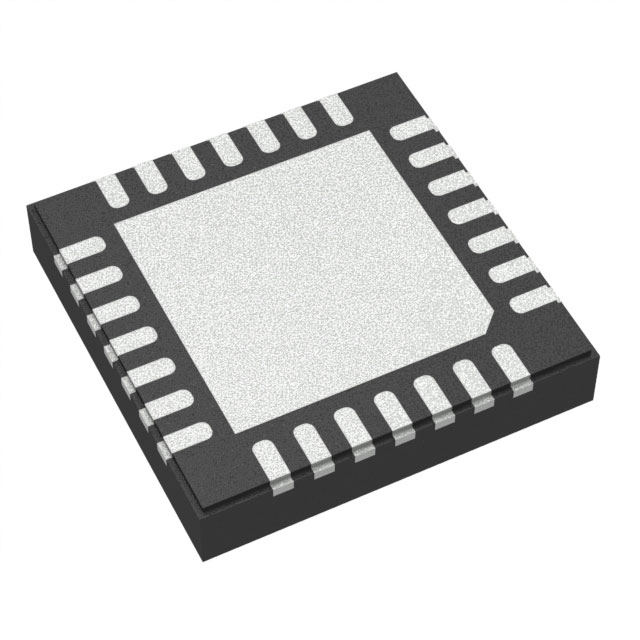

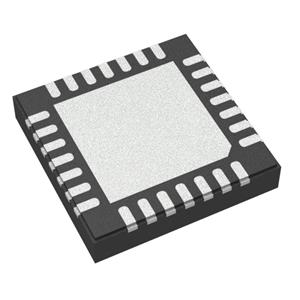

● 28-pin 5 mm × 5 mm VQFN package with wetted surface

Applications

● Automotive hosts and clusters

● Automotive camera modules

● Surround-view system ECUs

● Radar system ECUs

● Automotive displays
