The P3T2030DUK is a temperature-to-digital converter with a temperature range of -40 °C to +125 °C. It uses an on-chip bandgap temperature sensor and an A-D converter with over-temperature detection. It uses an on-chip bandgap temperature sensor and A-D conversion with over-temperature detection. The device contains several data registers: Configuration registers store device settings such as the device temperature register (Temp) which stores digital temperature readings. The controller communicates via a two-wire serial I3C/I2C bus interface. It can be configured for different operating conditions. It can be set to normal mode or shutdown mode to minimise power consumption.

Product Characteristics

Sensor Type: Digital

Response Temperature - Local: -40°C ~ 125°C

Output Type: I²C, I3C

Voltage - Supply: 1.4V ~ 1.98V

Resolution: 12 b

Functions: Standby Mode, Off Mode, Single Trigger, Programmable Limits

Accuracy - Maximum (Minimum): ±2

Test Conditions: 0°C ~ 85°C (-40°C ~ 125°C)

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

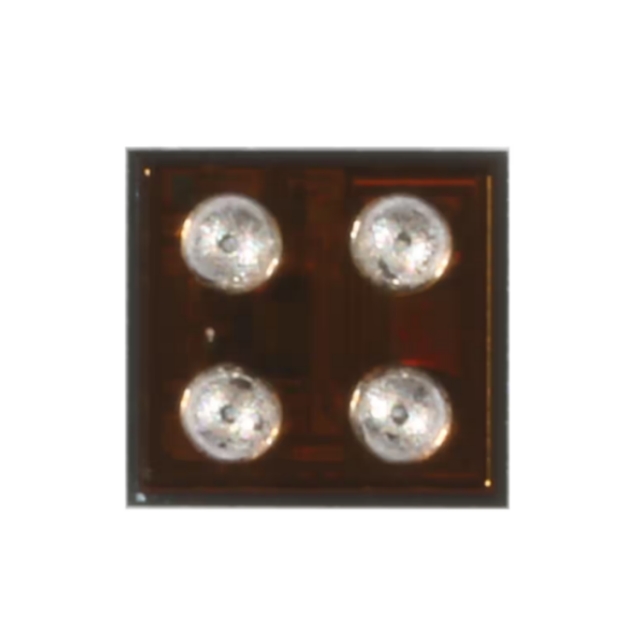

Package / Case: 4-UFBGA, WLCSP

Delivery includes: 4-WLCSP (0.83x0.78)

Applications

● Portable devices

● Internet of Things

● Solid State Drives

● Industrial controllers

● Servers

● Personal computers/laptops
