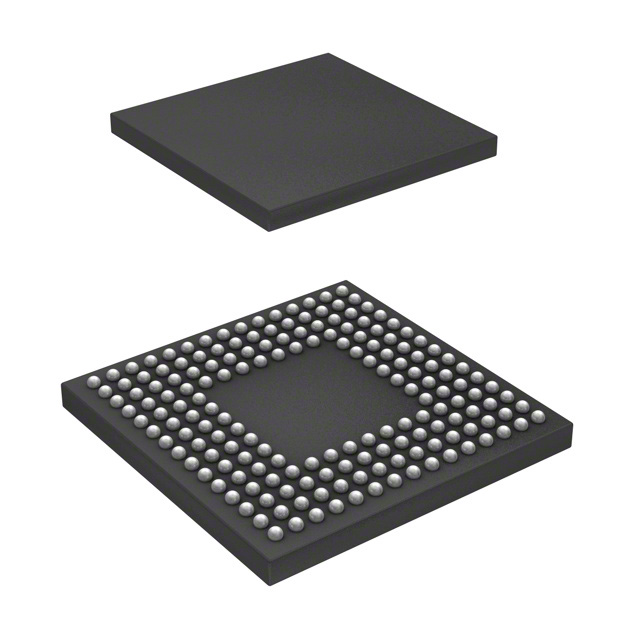

R7FS5D97C2A01CBG MCU integrates multiple series of software- and pin-compatible Arm®-based 32-bit cores that share the same set of peripherals to facilitate design scalability and efficient platform-based product development.

R7FS5D97C2A01CBG incorporates a high-performance Arm Cortex®-M4 core running up to 120 MHz.

Feature

Up to 2-MB code flash memory

640-KB SRAM Graphics LCD Controller (GLCDC)

2D Drawing Engine (DRW) Capacitive Touch Sensing Unit (CTSU)

Ethernet MAC Controller (ETHERC) with IEEE 1588 PTP, USBFS, USBHS, SD/MMC Host Interface

Quad Serial Peripheral Interface (QSPI)

Security and safety features

Analog peripherals

Armv7E-M architecture with DSP instruction set

Maximum operating frequency: 120 MHz

Support for 4-GB address space

On-chip debugging system: JTAG, SWD, and ETM

Boundary scan and Arm Memory Protection Unit (Arm MPU)

Up to 2-MB code flash memory (40 MHz zero wait states)

64-KB data flash memory (125,000 erase/write cycles)

Up to 640-KB SRAM

Flash Cache (FCACHE)

Memory Protection Units (MPU)

Memory Mirror Function (MMF)

128-bit unique ID

 Serial Communications Interface (SCI) with FIFO × 10

Serial Peripheral Interface (SPI) × 2

I2C bus interface (IIC) × 3

Controller Area Network (CAN) × 2

Serial Sound Interface Enhanced (SSIE) × 2

SD/MMC Host Interface (SDHI) × 2

Quad Serial Peripheral Interface (QSPI)

IrDA interface

Sampling Rate Converter (SRC)

External address space

8-bit or 16-bit bus space is selectable per area

SDRAM support
