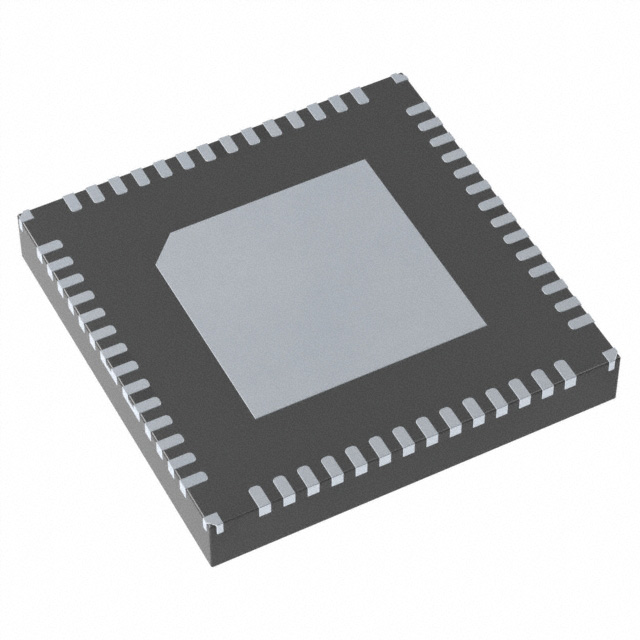

For picture reference, please see the specifications
< >

Commodity Model:8T49N287A-040NLGI

Trade Name:PLLs, Frequency Synthesizers

Brand:Renesas

Particular Year:25+

Package:56-VFQFN

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Renesas
Model
8T49N287A-040NLGI
Package
56-VFQFN
Describe
FemtoClock NG Universal Frequency Translator (2-in/2-PLL/8-out)

Product Description

The 8T49N287A-040NLGI is a FemtoClock® NG eight-channel frequency converter with two fractional feedback PLLS, which can be used as a jitter attenuator and frequency converter. With a six-integer and two-decimal output divider, this frequency converter can generate up to eight different output frequencies (8kHz to 1GHz). Eight different outputs can be selected among LVPECL, LVCMOS, LVDS or HCSL output levels. The following are the key features:

Supports SDH/SONET and synchronous Ethernet clocks, including all FEC rate conversions

Jitter: <0.3ps RMS (typical value, including spurious, 12kHz to 20MHz)

Lock to input signal, hold and freely run working modes

The initial hold accuracy is +50ppb

Up to two LVPECL, LVDS, LVHSTL, HCSL or LVCMOS input clocks are accepted:

The accepted frequency range is from 8kHz to 875MHz

Automatic and manual input clock selection, uninterrupted switching

Clock input monitoring, including support for intermittent clock speeds

The phase slope limit and the completely uninterrupted switching option can control the output clock phase transients

It operates with a basic mode crystal ranging from 10MHz to 40MHz

Generate 8 LVPECL/LVDS/HCSL or 16 LVCMOS output clocks:

The output frequency range is from 8kHz to 1.0GHz (differential)

The output frequency range is from 8kHz to 250MHz (LVCMOS)

Four general-purpose I/O (GPIO) pins with optional status and control support:

Four output enable control inputs can be mapped to any one of the eight outputs

Lock, hold and signal loss status output

Open leak interrupt pin

Nine programmable loop bandwidth Settings for each PLL: 1.4Hz to 360Hz

Optional quick lock function

Programmable output phase delay, with a step size as small as 16ps

Registers can be programmed via I2C or an external I2C EEPROM

Bypass clock path for system testing

Ambient operating temperature: -40°C to 85°C

56QFN lead-free (RoHS 6) package


The 8T49N287A-040NLGI frequency converter supports uninterrupted reference switching between input clocks. These frequency converters can monitor the signal loss (LOS) of all input clocks and issue an alarm when an input clock failure is detected. Typical applications include 1G, 10G, 40G and 100G synchronous Ethernet, SONET/SDH, baseband of wireless base stations, data communication and OTN decommapping.
