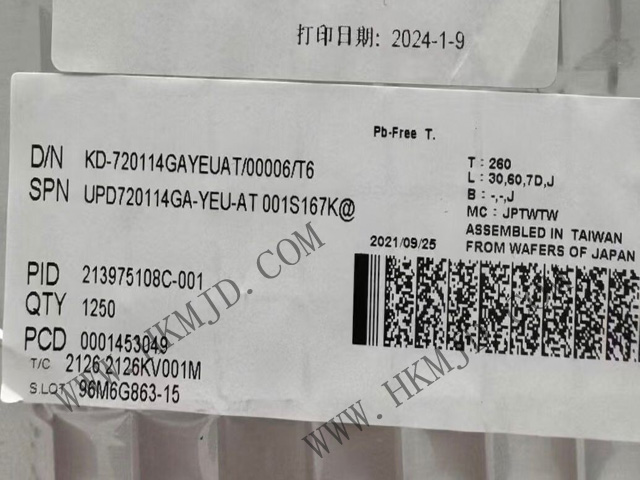

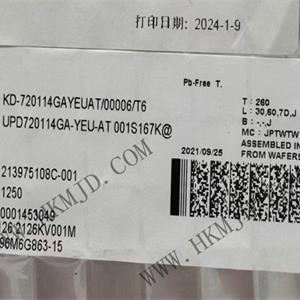

For picture reference, please see the specifications
< >

Commodity Model:UPD720114GA

Trade Name:USB Hub Controller

Brand:Renesas

Particular Year:21+

Package:TQFP-48

Delivery Date:New and Original

Stock: 25000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Renesas
Model
UPD720114GA
Package
TQFP-48
Describe
USB Hub Controller USB 2.0 USB Interface 48-TQFP (7x7)

Product Description

UPD720114GA is a high-performance USB 2.0 hub controller from Renesas Electronics that complies with the USB 2.0 specification and supports high-speed (480 Mbps), full-speed (12 Mbps), and low-speed (1.5 Mbps) data transfer. The chip integrates multiple functional modules, including a USB controller, port management, power management, and status indication, making it suitable for a wide range of electronic devices and systems.


UPD720114GA Product Features

High-speed data transfer: Supports the USB 2.0 standard with a maximum transfer rate of 480 Mbps.

Backward compatibility: Compatible with USB 1.1 devices and hosts.

Multi-port support: Supports up to 4 downstream ports.

Low Power Consumption Design: Power consumption as low as 10 μA when the hub is idle, and 149 mA when all ports are operating in high-speed mode.

Integrated Features: Supports split transaction processing, overcurrent protection, and LED port status indication.

Power Management: Supports self-powered and bus-powered modes.

Package Type: Available in a 48-pin TQFP package.


UPD720114GA Technical Specifications

Data transfer rate: High-speed (480 Mbps), full-speed (12 Mbps), low-speed (1.5 Mbps)

Operating Voltage: 3.14V to 3.46V

Operating Temperature Range: 0°C to 85°C

Package Type: 48-TQFP (7x7 mm)

Maximum Number of Downstream Ports: 4

Power Consumption: 10μA in idle mode, 149mA in high-speed mode


UPD720114GA Application Areas

Consumer Electronics: Such as smartphones, tablets, smart TVs, etc., providing additional USB expansion capabilities.

Industrial Automation: Used as a communication interface between industrial equipment and PCs.

Embedded Systems: Such as set-top boxes, portable medical devices, etc., enhancing the USB connectivity of devices.

Data Storage: Such as portable hard drives, USB flash drives, etc., enabling high-speed data transfer.
