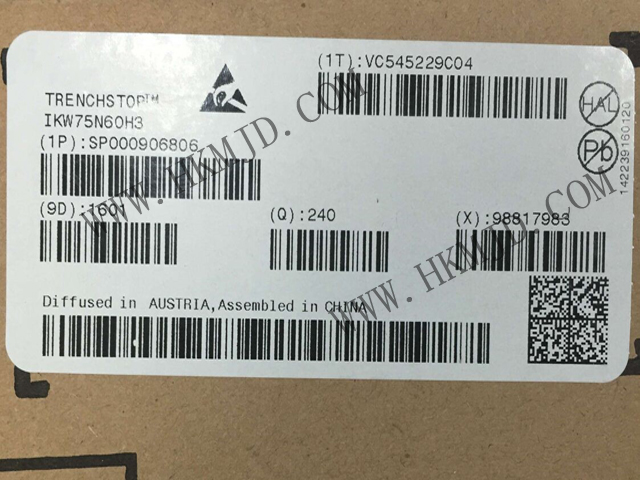

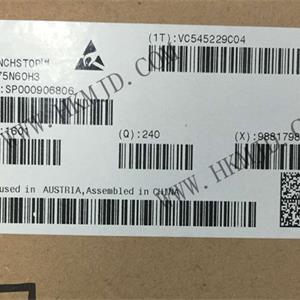

IKW75N60H3 - 600V IGBT Transistors with anti-parallel diode in TO-247 package

Product Description

IKW75N60H3 - High speed 600 V, 75 A hard-switching TRENCHSTOP™ IGBT3 co-packed with free-wheeling diode in a TO-247 package provides the best compromise between switching and conduction losses. The key feature of this family is a MOSFET-like turn-off switching behavior, leading to low turn off losses.

Summary of Features

Low switching losses for high efficiency

Excellent VCE(sat) behavior thanks to the famous Infineon TRENCHSTOP™ technology

Fast switching behavior with low EMI emissions

Optimized diode for target applications, meaning further improvement in switching losses

Low gate resistor selection possible (down to 5Ω) whilst maintaining excellent switching behaviour

Short circuit capability 5µs

Offering Tj(max) of 175°C

Packaged with and without freewheeling diode for increased design freedom

Potential Applications

Uninterruptible Power Supplies (UPS)

Industrial Heating and Welding

Solutions for Solar Energy Systems
