AIHD04N60R - IGBT Trench Field Stop with integrated diode in packages offering space saving advantage.

Product Attributes

IGBT Type: Trench Field Stop

Voltage - Collector Emitter Breakdown (Max): 600 V

Current - Collector (Ic) (Max): 8 A

Current - Collector Pulsed (Icm): 12 A

Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 4A

Power - Max: 75 W

Switching Energy: 90µJ (on), 150µJ (off)

Input Type: Standard

Gate Charge: 27 nC

Td (on/off) @ 25°C: 14ns/146ns

Test Condition: 400V, 4A, 43Ohm, 15V

Operating Temperature: -40°C ~ 175°C (TJ)

Mounting Type: Surface Mount

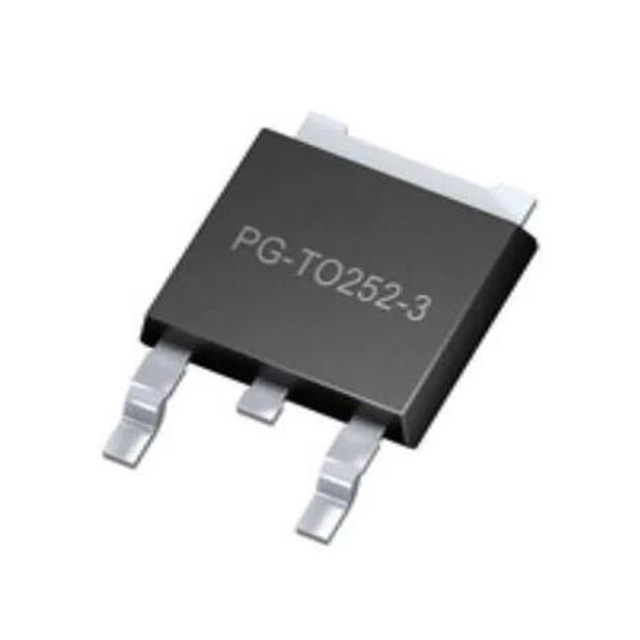

Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63

Supplier Device Package: PG-TO252-3

Product Features

TRENCHSTOP™ Reverse Conducting (RC) technology for 600V applications offering

Smooth switching performance leading to low EMI levels

Very tight parameter distribution

Operating range of 1 to 20kHz

Maximum junction temperature 175°C

Dynamically stress tested

Short circuit capability of 5μs
