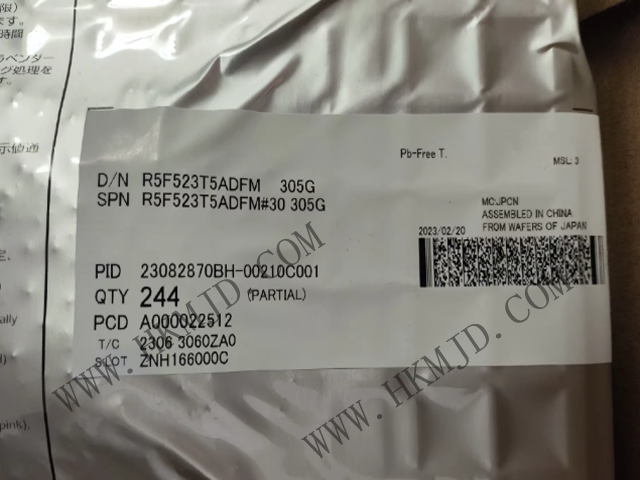

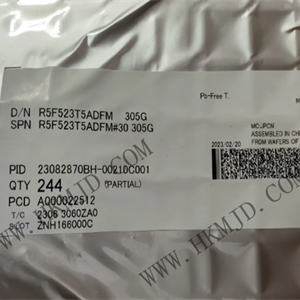

R5F523T5ADFM is a 32-bit microcontroller suited for single inverter control and has a built-in floating-point processing unit that enables users to easily program complex inverter control algorithms.

Feature

Fast interrupt

CISC Harvard architecture with 5-stage pipeline

Variable-length instructions, ultra-compact code

On-chip debugging circuit

Memory protection unit (MPU) supported

Operation from a single 2.7-V to 5.5-V supply

Three low power consumption modes

128-/64-Kbyte capacities

On-board or off-board user programming

Seven types of reset, including the power-on reset (POR)

Low voltage detection (LVD) with voltage settings

Main clock oscillator frequency: 1 to 20 MHz

External clock input frequency: Up to 20 MHz

PLL circuit input: 4 MHz to 12.5 MHz

Clock frequency accuracy measurement circuit (CAC)

I2C bus interface: Transfer at up to 400 kbps (one channel)

RSPI capable of high speed connection (one channel)

On-chip sample-and-hold circuit: 12bit × up to 3 channels

Sampling time can be set for each channel

Applications

General industrial and consumer equipment

Electronic Valve with Flow Meter

Induction Heating Cooker

E-bike System Solution

Smart BLDC Fan with Humidity and Gas Sensors

Ventilator System

Air Duct System

48V Mobility Solution

Solar Irrigation Pump Controller

Smart Solar Irrigation Pump Controller

Smart Massage Chair

Industrial

Office automation

Home appliances
