The LT8601EUJ is a three-channel, current-mode, monolithic step-down switching regulator with programmable power-on reset. All regulators are synchronised to a single oscillator and have an adjustable frequency range of 250kHz to 2.2MHz. Under light load conditions, the LT8601 can be configured for micropower burst mode operation or pulse hopping operation. In the following application circuit, micropower operation produces a quiescent current of 30μA when all three regulators are operating.

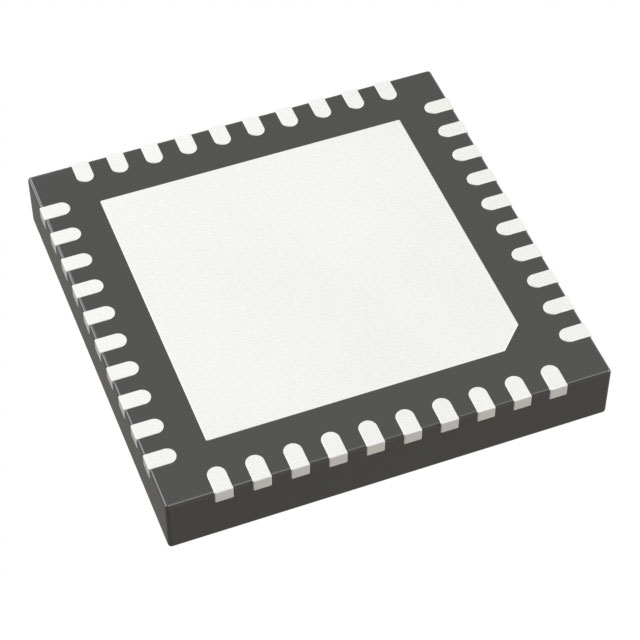

The LT8601EUJ is available in a 40-pin 6mm x 6mm QFN package.

Benefits and Features

Flexible power system provides three outputs and wide input voltage range

Two high-voltage synchronous buck regulators

Input voltage range: 3V to 42V

Output currents up to 2.5A and 1.5A

High efficiency: up to 93 per cent

One low-voltage synchronous buck regulator

Input voltage range: 2.6V to 5.5V

Output current up to 1.8A with 95% efficiency

Programmable power-on reset

Resistor-programmable and synchronised switching frequency from 250kHz to 2.2MHz

Low-ripple Burst Mode® operation

30μA IQ (12VIN to 3.3VOUT2)

Output ripple <15mV

Good power indication

Dual-phase clocking reduces input current ripple

Thermally enhanced 40-pin QFN (6mm × 6mm) package available

AEC-Q100 certified for automotive applications

Applications

Automotive systems

Distributed power conditioning

Industrial control and power supplies
