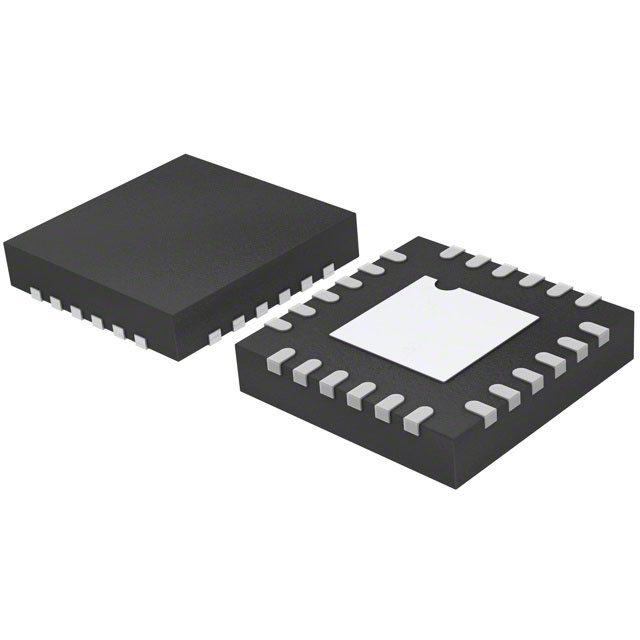

The AD7383-4BCPZ is a 16-bit, four-channel, synchronously sampled, high-speed Successive Approximation Register (SAR) analog-to-digital converter (ADC) powered from 3.0V to 3.3V with throughput rates up to 4 MSPS. The analog input type is pseudo-differential and is sampled and converted at the CS drop terminal. The device has an on-chip oversampling module that improves dynamic range and reduces noise at lower bandwidths.

specification

Number of digits: 16

Sampling rate (per second) : 4M

Input number: 4

Input type: pseudo difference

Data interface: Serial, SPI

Configuration: ADC

Ratio -S /H:ADC: 0:4

Number of A/D converters: 4

Architecture: SAR

Reference type: External, internal

Voltage - power supply, analog: 3V ~ 3.6V

Voltage - power supply, number: 1.65V ~ 3.6V

Feature: Synchronous sampling

Operating temperature: -40°C ~ 125°C

Package/Housing: 24-UFQFN bare pad, CSP

Supplier Package: 24-LFCSP (4x4)

Mounting type: Surface mount type
